1449340000 - RSM-16 115VAC/DC Relay with LED Display and 30M Switch Life

1449340000 - RSM-16 115VAC/DC Relay with LED Display and 30M Switch Life

SKU: 1449340000 Download PDF

Variant:
  • 1449340000 - RSM-16 115VAC/DC Relay with LED Display and 30M Switch Life
Now $362.46
BEFORE   $0.00 Now $362.46
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

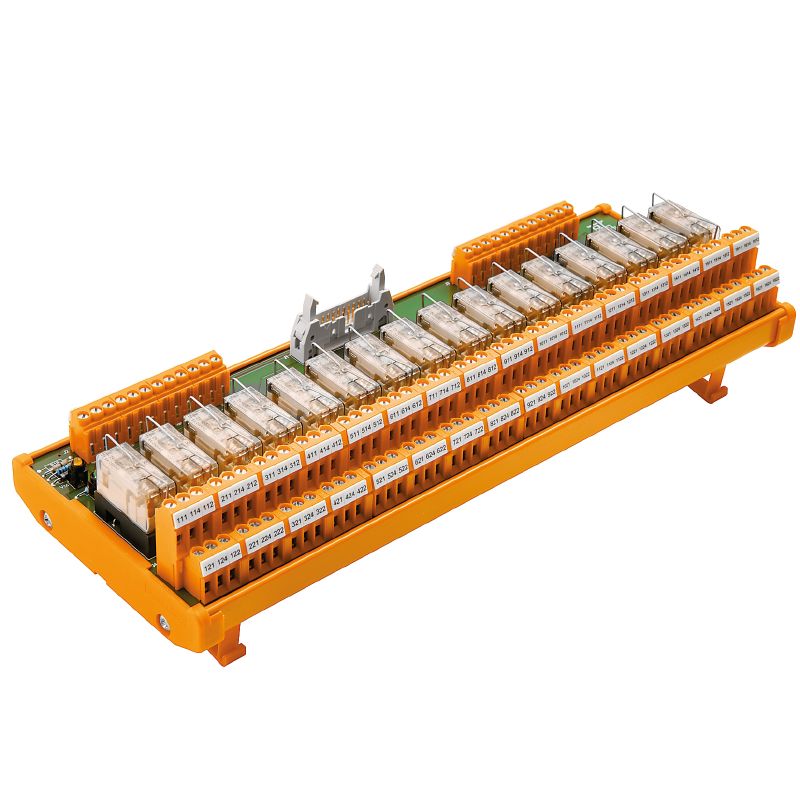

Presenting the RSM-16 115VAC/DC 2CO Z, a versatile device designed for superior performance It operates efficiently across a voltage range of 115 VAC/DC and is equipped with a tension-clamp connection for secure installation With a robust mechanical lifespan of 30 million switching cycles, it ensures long-term reliability Each relay features a clear green LED status indicator for easy monitoring This device supports a maximum output current of 4.

6 A and is rated for voltages up to 250 V Additionally, it meets RoHS compliance standards and includes specifications for environmental safety, making it suitable for various applications.

Features and Benefits:

    •Green LED status display for relays.

    •Tension-clamp connection for ease of use.

    •High mechanical service life of 30 x 10^6 switching cycles.

Specifications:

 Depth 66 mm
 Height 109 mm
 Width 290 mm
 Rated voltage AC U N (input) 115 V
 Rated voltage DC U N (input) 115 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Operating temperature UL, max. 25 °C
 Operating temperature UL, min. 0 °C
 Input voltage 115 VAC/DC ± 10%
 Input current AC 3.3 mA / DC 4.8 mA
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Max. AC continuous current 5 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
