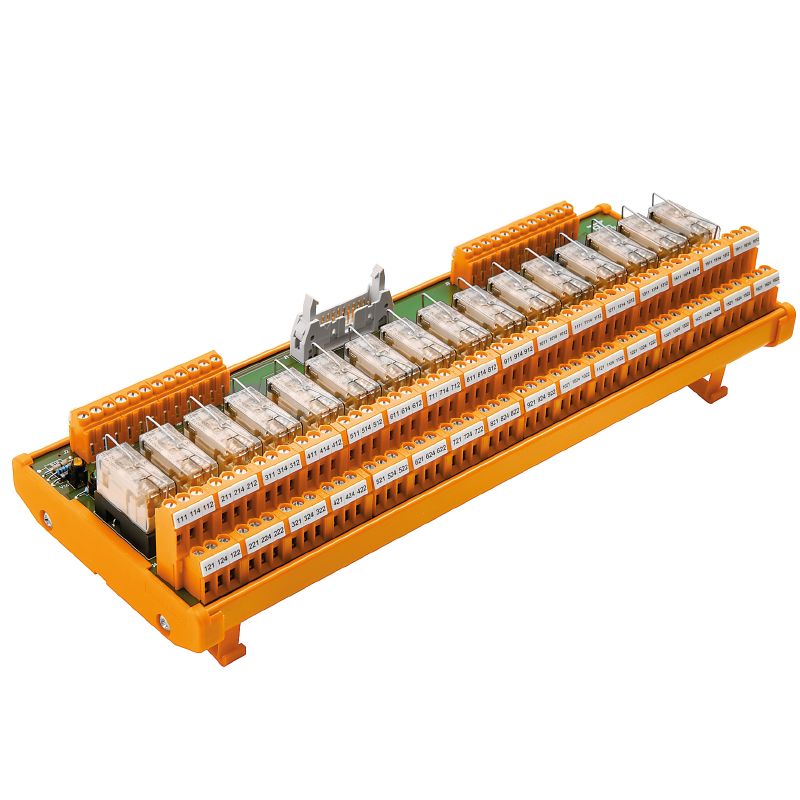

1449310000 - RSM-16 24VAC/DC Component with 2 Changeover Contacts

1449310000 - RSM-16 24VAC/DC Component with 2 Changeover Contacts

SKU: 1449310000 Download PDF

Variant:
  • 1449310000 - RSM-16 24VAC/DC Component with 2 Changeover Contacts
Now $241.73
BEFORE   $0.00 Now $241.73
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-16, a reliable electrical connection component designed to handle 24VAC/DC with dual changeover contacts This device adheres to RoHS standards and carries the UL certification number E141197, ensuring safety and compliance With user-friendly screw connections for easy installation, the RSM-16 is a key part of the RSM series, built to perform effectively under various environmental conditions.

Its specific weight and dimensions enhance its practicality for your electrical needs.

Features and Benefits:

    •RoHS compliant without exemption.

    •LED status display per relay is green.

    •Designed for mechanical service life of 30 x 10^6 switching cycles.

    •Potential-free contact relay type.

Specifications:

 Depth: 71 mm
 Height: 109 mm
 Width: 290 mm
 Net weight: 856.228 g
 Operating temperature: -25 to 50 °C
 Storage temperature: -40 to 60 °C
 Rated current I N: 22.9 mA
 Rated voltage AC U N (supply): 24 V
 Rated voltage DC U N (supply): 24 V
 Rated current (supply): 1 A
 Rated voltage AC U N (input): 24 V
 Rated voltage DC U N (input): 24 V
 Rated voltage AC U N (output): 250 V
 Rated current I max (output): 4.6 A
 Input voltage: 24 V AC ± 10%, 24 V DC ± 10%
 Material of contacts: AgNi 90/10
 Minimum contact current: 0.1 A
 Minimum contact voltage: 5 V
 Insulation test voltage AC: 1.2 kV
 Clearance input/output: ≥ 5.5 mm
 Tightening torque, max: 0.6 Nm
 Tightening torque, min: 0.5 Nm
 Type of connection: Screw connection
