1449300000 - RSM-16 48V Device, 66mm Depth, RoHS Compliant

SKU: SKU: 1449300000 Download PDF

Select a Variant:

1449300000 - RSM-16 48V Device, 66mm Depth, RoHS Compliant

SET THE QTY:

Now $260.35 Web pricing policy

~~BEFORE $0.00~~ Now $260.35 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

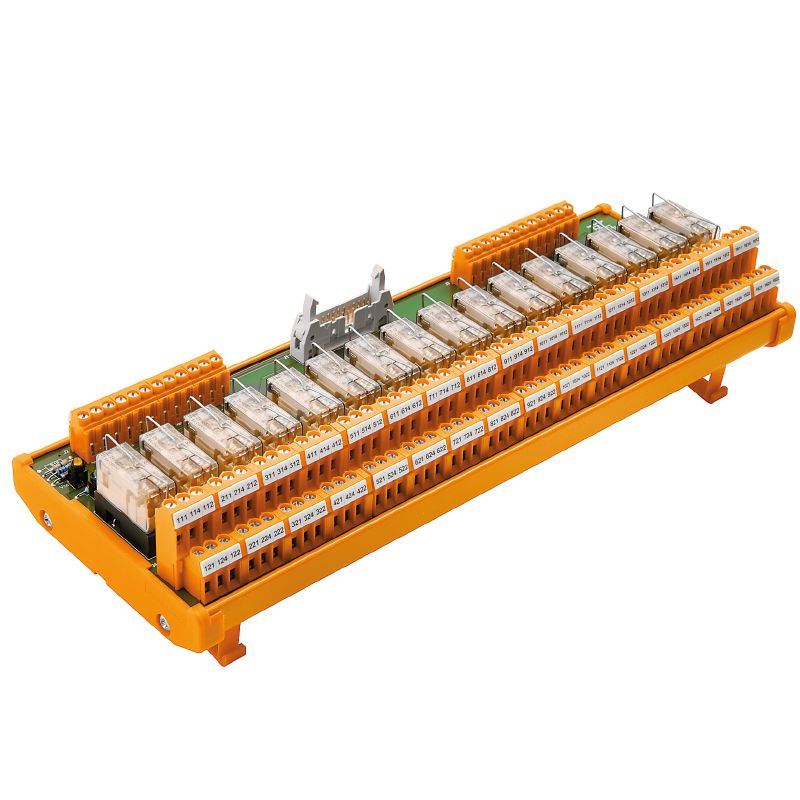

Introducing the RSM-16 48V-2CO Z, a reliable device engineered with a tension-clamp connection for secure use It adheres to RoHS regulations, ensuring compliance with environmental standards With dimensions of 290 mm in width, 109 mm in height, and 66 mm in depth, this unit is compact yet functional, weighing in at 720018 g The RSM-16 can operate in temperature conditions ranging from -25 °C to 50 °C, with storage capabilities between -40 °C and 60 °C.

Its UL ratings provide assurance for safe operation within these temperature parameters, making it a dependable choice for various applications.

Features and Benefits:

•Tension-clamp connection.

•LED status display.

•Compliant with RoHS exemption.

•Mechanical service life of 30 million switching cycles.

Specifications:

Depth	66 mm
Height	109 mm
Width	290 mm
Net weight	720.018 g
Operating temperature	-25...50 °C
Storage temperature	-40...60 °C
Rated voltage DC U N (supply)	48 V
Rated current (supply)	1 A
Rated voltage AC U N (output)	250 V
Rated current I max (output)	4.6 A
Mechanical service life	30 x 10^6 switching cycles
Material of contacts	AgNi 90/10
Pollution severity level	2
Insulation test voltage AC	1.2 kV
Clamping range, max.	2.5 mm²
Clamping range, min.	0.13 mm²
