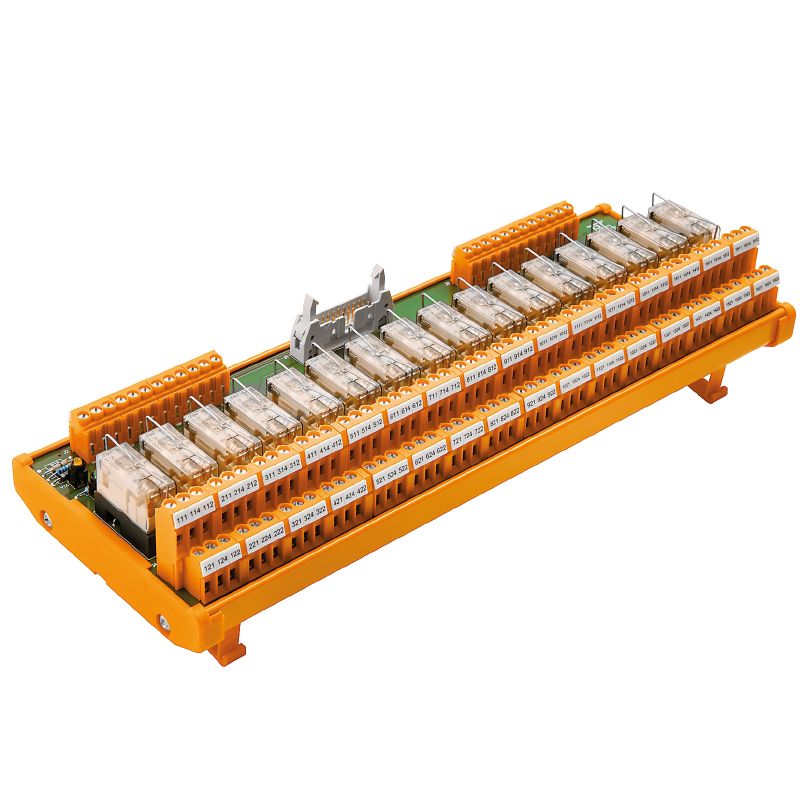

1449280000 - RSM-16 48V Interface Module for Screw Connections

1449280000 - RSM-16 48V Interface Module for Screw Connections

SKU: 1449280000 Download PDF

Variant:
  • 1449280000 - RSM-16 48V Interface Module for Screw Connections
Now $222.09
BEFORE   $0.00 Now $222.09
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-16 48V-2CO S, engineered specifically for applications requiring screw connections This product is compliant with ROHS standards and comes with certificate number E141197 Please note, this item is currently discontinued and is not available for delivery.

Features and Benefits:

    •LED status display per relay is indicated by a green light.

    •LED status of the supply voltage is indicated by a yellow light.

    •Mechanical service life of 30 x 10^6 switching cycles.

    •Potential-free contact type of output.

Specifications:

 Depth 71 mm
 Height 109 mm
 Width 290 mm
 Operating temperature UL, max. 25 °C
 Operating temperature UL, min. 0 °C
 Rated current I N 8.7 mA
 Rated voltage DC U N (supply) 48 V
 Rated current (supply) 1 A
 Rated voltage DC U N (input) 48 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Insulation coordination (EN50178) Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Overvoltage category output/output III
 Connection (field side) LL2N 5.08 mm
 Connection on control side LP 5.08 + plug-in connector in acc. with IEC60603-13 / DIN41651, 20-pin
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Type of connection Screw connection
