1449270000 - RSM-16 48V+ Screw Connection Component, UL Certified

SKU: SKU: 1449270000 Download PDF

Variant:

1449270000 - RSM-16 48V+ Screw Connection Component, UL Certified

Now $222.09

~~BEFORE $0.00~~ Now $222.09

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

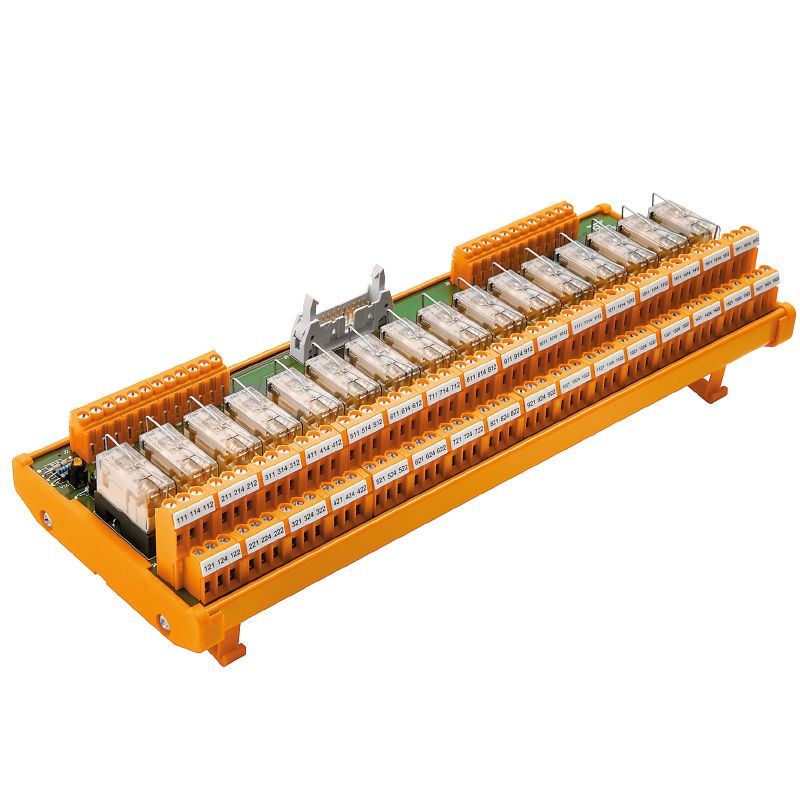

Introducing the RSM-16 48V+ 2CO S, a reliable component featuring a secure screw connection interface This product adheres to multiple environmental regulations, including RoHS compliance, and proudly bears the UL certification number E141197 Although it falls under general ordering data as type RSM-16 48V+ 2CO S, please note that this item has been classified as discontinued.

Features and Benefits:

•Compliant with RoHS exemption.

•LED status display for relay in green.

•LED status for supply voltage in yellow.

•Mechanical service life up to 30 x 10^6 switching cycles.

Specifications:

Depth	71 mm
Height	109 mm
Width	290 mm
Operation temperature	-25...50 °C
Storage temperature	-40...60 °C
Rated current I N	8.7 mA
Rated voltage DC U N (supply)	48 V
Rated current (supply)	1 A
Rated voltage AC U N (output)	250 V
Rated current I max (output)	4.6 A
Type of output	Potential-free contact
Material of contacts	AgNi 90/10
Max. AC continuous current	5 A
Insulation coordination (EN50178)	Pollution severity level 2
