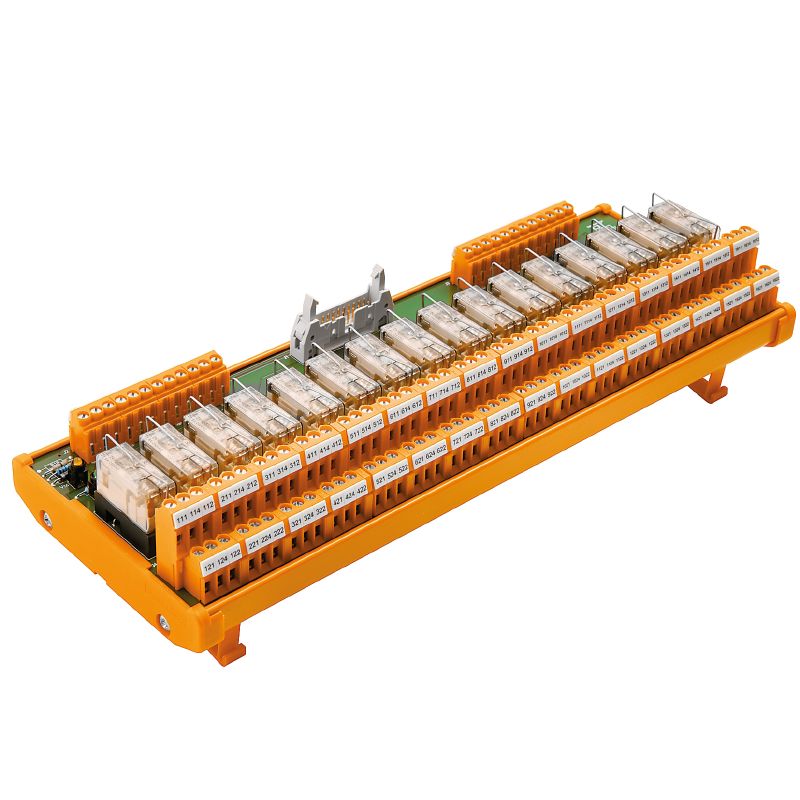

1449170000 - Compact RSM-16 Device, UL Certified, 290mm x 109mm Dimensions

1449170000 - Compact RSM-16 Device, UL Certified, 290mm x 109mm Dimensions

SKU: 1449170000 Download PDF

Variant:
  • 1449170000 - Compact RSM-16 Device, UL Certified, 290mm x 109mm Dimensions
Now $222.09
BEFORE   $0.00 Now $222.09
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-16 12V+ 2CO S, a reliable device known for its screw connections This product meets RoHS standards and holds a UL certification, ensuring compliance with safety regulations With its compact dimensions—71 mm in depth (2795 inches), 109 mm in height (4291 inches), and 290 mm in width (11417 inches)—it is designed for versatility in various applications The RSM-16 operates effectively in a wide range of temperatures, supporting storage conditions from -40 to 60 °C and functioning optimally between -25 to 50 °C.

It features a green LED to display relay status and a yellow LED to show supply voltage This device incorporates both field and control side connection types with 508 mm connectors, catering to different installation needs It also boasts an impressive mechanical service life of 30 million switching cycles, making it a durable choice for your needs.

Features and Benefits:

    •Green LED status display per relay.

    •Yellow LED status of the supply voltage.

    •Screw connection type.

Specifications:

 Operating temperature UL, max. 25 °C
 Operating temperature UL, min. 0 °C
 Rated current I N 33 mA
 Rated voltage DC U N (supply) 12 V
 Rated current (supply) 1 A
 Rated voltage DC U N (input) 12 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Input voltage 12 V DC ± 10%
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 5 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Overvoltage category output/output III
 Clearance input/output ≥ 5.5 mm
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Flexible with sleeve, max. 2.5 mm²
 Flexible with sleeve, min. 0.5 mm²
 Max. wire cross-section, AWG AWG 12
 Min. wire cross-section, AWG AWG 26
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Connection (field side) LL2N 5.08 mm
 Connection on control side LP 5.08 + plug-in connector in acc. with IEC60603-13 / DIN41651, 20-pin
