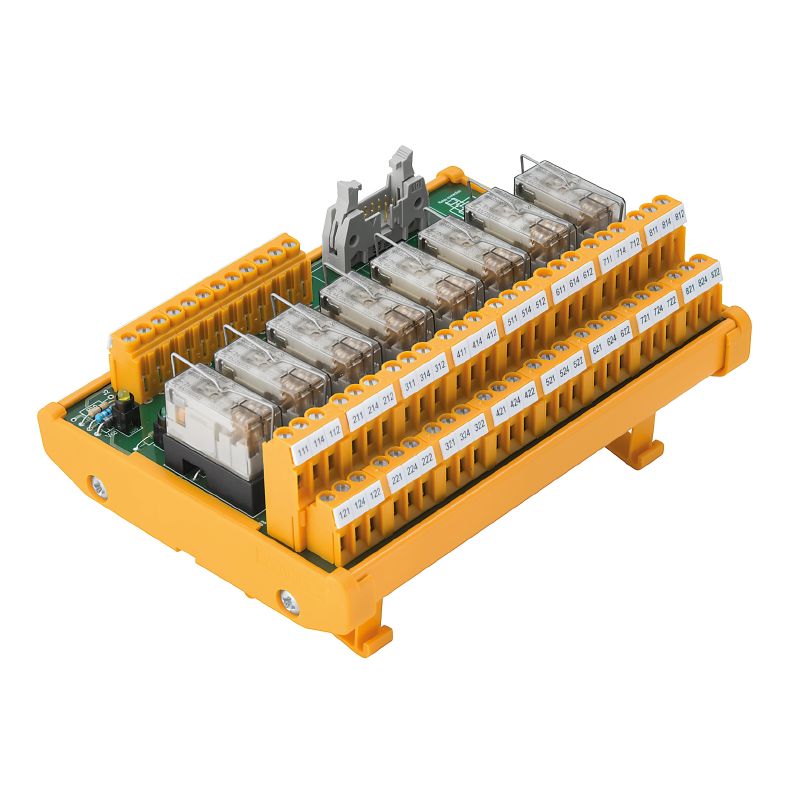

1449100000 - RSM-8I 24V DC Control Interface with LED Indicators

1449100000 - RSM-8I 24V DC Control Interface with LED Indicators

SKU: 1449100000 Download PDF

Variant:
  • 1449100000 - RSM-8I 24V DC Control Interface with LED Indicators
Now $159.63
BEFORE   $0.00 Now $159.63
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-8I 24V+ 2CO S interface device, expertly engineered for seamless operational control This product features a reliable screw connection and is RoHS compliant, boasting a UL certification (number E141197) With a nominal input voltage of 24 V DC, it operates efficiently in environments up to 50 °C The device is equipped with green and yellow LED indicators that display the relay status and supply voltage, respectively.

Please note that this item is available for purchase until May 20, 2014.

Features and Benefits:

    •LED status display per relay.

    •Screw connection for field side.

    •Potential-free contact output.

    •Rated for 10 million switching cycles.

    •Insulation coordination meeting EN50178 standards.

Specifications:

 Depth 75 mm
 Height 109 mm
 Width 149 mm
 Net weight 466.088 g
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Input voltage 24 V DC ± 10%
 Input current 16.7 mA
 Rated current (supply) 1 A
 Operating temperature UL, max. 25 °C
 Operating temperature UL, min. 0 °C
 Relay type RCI
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 5 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Type of connection Screw connection
