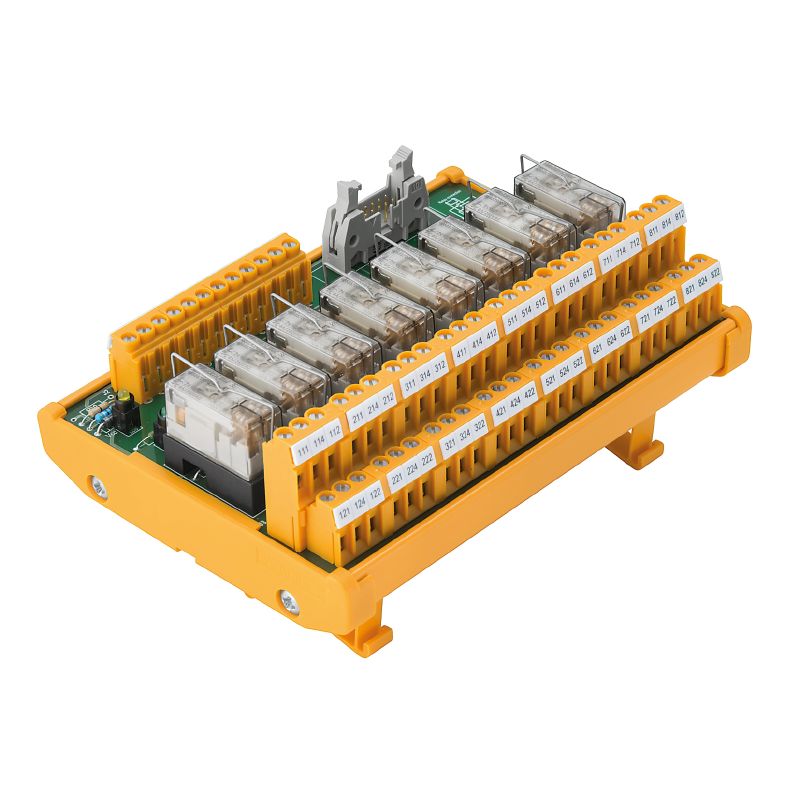

1448980000 - RSM-8 48V Relay with LED Status Display and Screw Connection

1448980000 - RSM-8 48V Relay with LED Status Display and Screw Connection

SKU: 1448980000 Download PDF

Variant:
  • 1448980000 - RSM-8 48V Relay with LED Status Display and Screw Connection
Now $142.78
BEFORE   $0.00 Now $142.78
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-8 48V+ 2CO S, a versatile solution for a range of applications featuring a reliable screw connection, all while adhering to RoHS standards This device is engineered to perform effectively across a broad temperature spectrum, accommodating various current and voltage ratings seamlessly Equipped with an LED status indicator, it provides clear visibility into both relay and supply voltage conditions, ensuring you’re always informed of its operational status.

The configuration includes distinct connections for both field and control sides, enhancing usability With robust switching capabilities and a mechanical service life that promotes longevity, this device stands out for its durability and performance.

Features and Benefits:

    •LED status for relay and supply voltage.

    •Screw connection for reliable connectivity.

    •Temperature operational range of -25 to 50 °C.

    •Compliant with environmental regulations.

Specifications:

 Depth 71 mm
 Height 109 mm
 Width 149 mm
 Net weight 421.208 g
 Storage temperature -40 to 60 °C
 Operating temperature -25 to 50 °C
 Rated current I 8.7 mA
 Rated voltage DC U_N (supply) 48 V
 Rated voltage DC U_N (input) 48 V
 Rated voltage AC U_N (output) 250 V
 Rated current I_max (output) 4.6 A
 Connection (field side) LL2N 5.08 mm
 Operating temperature UL, max 25 °C
 Operating temperature UL, min 0 °C
 Relay type RCL
 Type of output Potential-free contact
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 5 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation coordination (EN50178) Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Clamping range, max 6 mm²
 Clamping range, min 0.5 mm²
 Max. wire cross-section, AWG AWG 12
 Min. wire cross-section, AWG AWG 26
 Stripping length 6 mm
 Tightening torque, max 0.6 Nm
 Tightening torque, min 0.5 Nm
