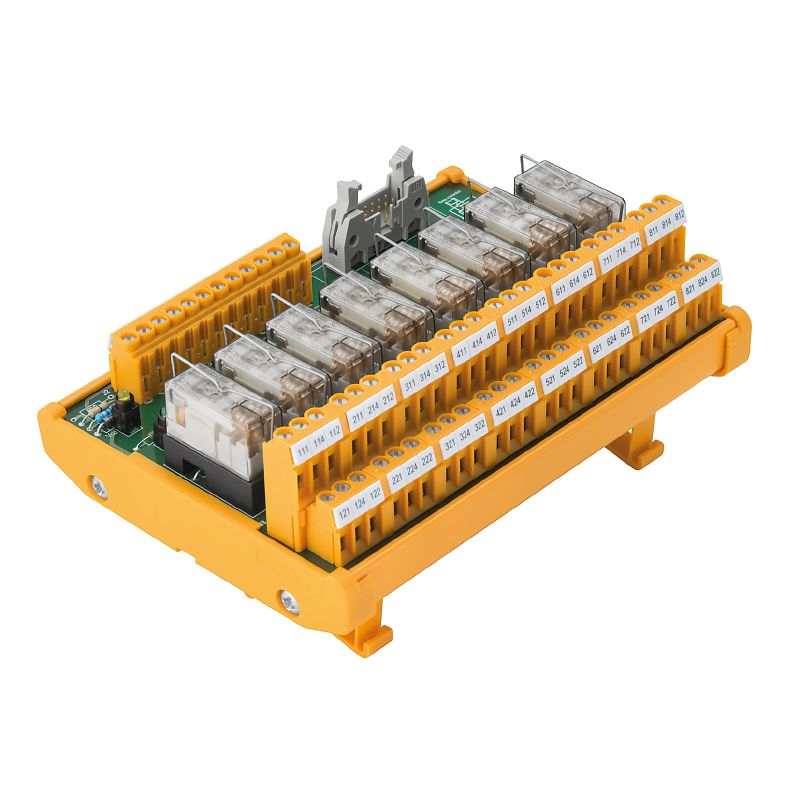

1448930000 - RSM-8 24V+ 2CO S with LED Display, -40 to 60 °C Range

SKU: SKU: 1448930000 Download PDF

Select a Variant:

1448930000 - RSM-8 24V+ 2CO S with LED Display, -40 to 60 °C Range

SET THE QTY:

Now $142.78 Web pricing policy

~~BEFORE $0.00~~ Now $142.78 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the RSM-8 24V+ 2CO S, a reliable device equipped with a screw connection interface This product meets RoHS compliance and is registered under UL file number for safety assurance Engineered to function effectively in a variety of temperatures, it can be stored between -40 and 60 °C and operates optimally from -25 to 50 °C A user-friendly LED display provides clear relay status, using a green light for relay indication and yellow for power supply status.

With an impressive mechanical lifespan, the device can handle up to 30 million switching cycles, ensuring long-lasting performance for your needs.

Features and Benefits:

•RoHS compliant with exemption.

•LED indicators for relay and supply voltage statuses.

•Screw connection type.

•High mechanical service life.

Specifications:

Depth	71 mm
Height	109 mm
Width	149 mm
Net weight	440.408 g
Operating temperature	-25...50 °C
Rated current (supply)	1 A
Rated voltage (supply)	24 V
Rated current I max (output)	4.6 A
Rated voltage AC U N (output)	250 V
Connection field side	LL2N 5.08 mm
Input voltage	24 V DC ± 10%
Relay type	RCL
Connection on control side	LP 5.08 + plug-in connector (10-pin)
Max. AC continuous current	5 A
