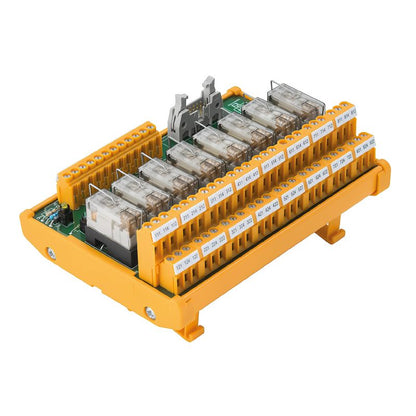

1448900000 - RSM-8 12V Relay Interface with LED Indicators and Dimensions 71mm x 149mm

SKU: SKU: 1448900000 Download PDF

Select a Variant:

1448900000 - RSM-8 12V Relay Interface with LED Indicators and Dimensions 71mm x 149mm

SET THE QTY:

Now $142.78 Web pricing policy

~~BEFORE $0.00~~ Now $142.78 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Introducing the RSM-8 relay interface, engineered for dependable switching applications With robust screw connections, this device meets RoHS compliance and is certified under UL File Number E141197 Compact yet efficient, it measures 149 mm in width, 109 mm in height, and 71 mm in depth, weighing just 461208 grams It operates effectively in temperatures ranging from -25 to 50 degrees Celsius This relay also includes LED indicators that display both supply voltage and relay status for easy monitoring.

Features and Benefits:

•LED status display per relay is green.

•LED status of the supply voltage is yellow.

•Mechanical service life rated at 30 x 10^6 switching cycles.

•Screw connection type for easy installation.

Specifications:

Depth	71 mm
Height	109 mm
Width	149 mm
Net weight	461.208 g
Storage temperature	-40...60 °C
Operating temperature	-25...50 °C
Input voltage	12 V DC ± 10%
Rated voltage	≤ 250 V AC
Max. AC continuous current	5 A
Rated current I N	33 mA
Rated current I max (output)	4.6 A
Pulse voltage test	6 kV
Insulation test voltage AC	1.2 kV
Overvoltage category	III
Rated input insulation voltage	<50 V AC
Rated output insulation voltage	250 V AC
