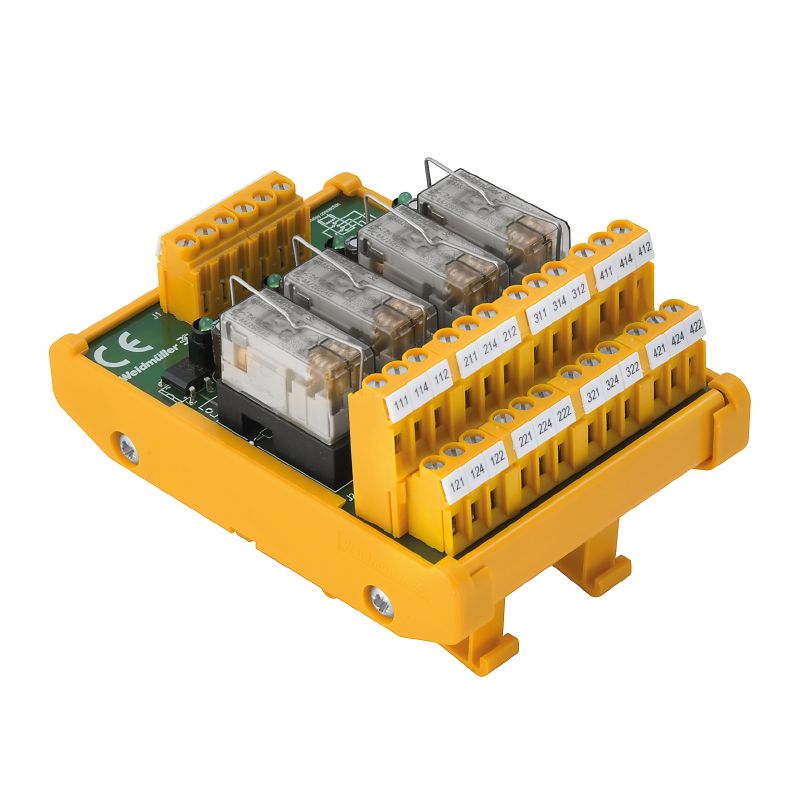

1448780000 - RSM-4 Relay, 115VAC/DC, 2 CO Contacts, RoHS Compliant

1448780000 - RSM-4 Relay, 115VAC/DC, 2 CO Contacts, RoHS Compliant

SKU: 1448780000 Download PDF

Variant:
  • 1448780000 - RSM-4 Relay, 115VAC/DC, 2 CO Contacts, RoHS Compliant
Now $112.38
BEFORE   $0.00 Now $112.38
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-4 relay, engineered for versatility with an operating voltage of 115VAC/DC and equipped with two changeover contacts Its robust screw connection interfaces promote a secure setup, while the device meets RoHS compliance standards for environmental safety The RSM-4 operates effectively within a temperature range of -25 to 50 °C, accommodating storage conditions from -40 to 60 °C With a load current capability of up to 4.

6A and a maximum switching capacity of 5A, this relay is tailored for reliable performance Designed for an input voltage of 115V AC/DC and categorized under insulation category III, it also complies with specified pollution severity levels, making it a dependable choice for your electrical needs.

Features and Benefits:

    •LED status indicator per relay.

    •Screw connection type.

    •RoHS Compliant.

Specifications:

 Depth 71 mm
 Height 109 mm
 Width 75 mm
 Rated current I N 4.8 mA
 Rated voltage AC U N (input) 115 V
 Rated voltage DC U N (input) 115 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Mechanical service life 30 x 10^6 switching cycles
 Input voltage 115 VAC/DC ± 10%
 Input current AC 3.3 mA / DC 4.8 mA
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 V AC
 Min. contact voltage 5 V
 Insulation test voltage AC 1.2 kV
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Max. wire cross-section, AWG AWG 12
 Min. wire cross-section, AWG AWG 26
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
