1448770000 - 24VAC/DC Relay with Dual Changeover Contacts

1448770000 - 24VAC/DC Relay with Dual Changeover Contacts

SKU: 1448770000 Download PDF

Variant:
  • 1448770000 - 24VAC/DC Relay with Dual Changeover Contacts
Now $105.66
BEFORE   $0.00 Now $105.66
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

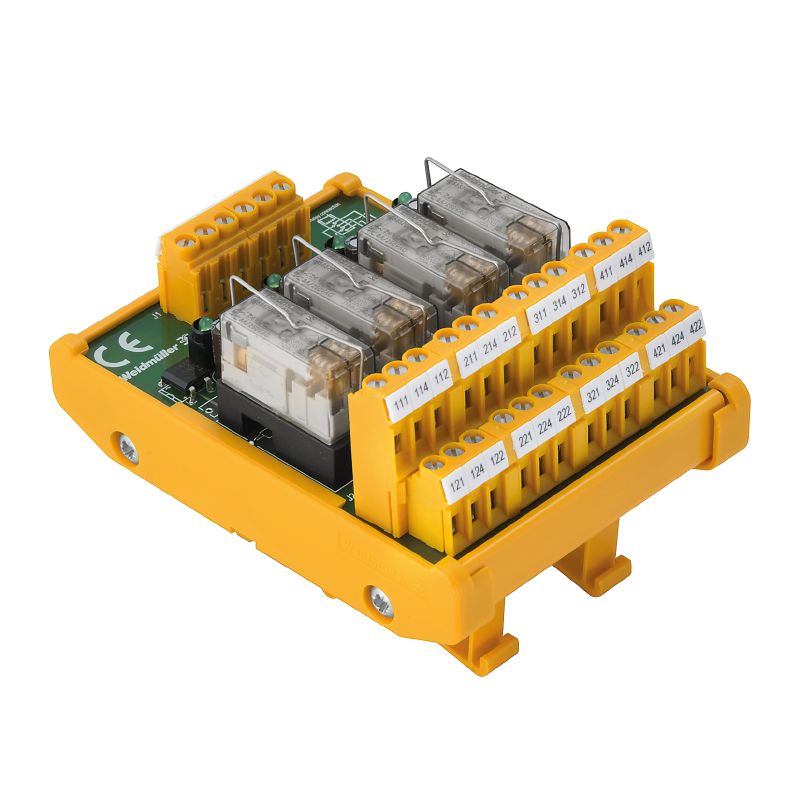

Introducing the RSM-4, a versatile device compatible with 24VAC or DC power sources This unit boasts dual changeover contacts and features a streamlined interface equipped with a tension-clamp connection for easy setup It meets RoHS regulations and is UL certified, bearing certificate number E141197, ensuring you can trust its quality and safety.

Features and Benefits:

    •LED status display for each relay that shows a green light.

    •Designed for a maximum of 30 million switching cycles.

Specifications:

 Depth 66 mm
 Height 109 mm
 Width 75 mm
 Rated voltage AC U N (input) 24 V
 Rated voltage DC U N (input) 24 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Input voltage 24 V AC ± 10%
 Input current DC 22.9 mA / AC 13.9 mA
 Max. AC continuous current 5 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation test voltage AC 1.2 kV
 Clamping range, max 2.5 mm²
 Clamping range, min 0.13 mm²
 Stripping length 7 mm
