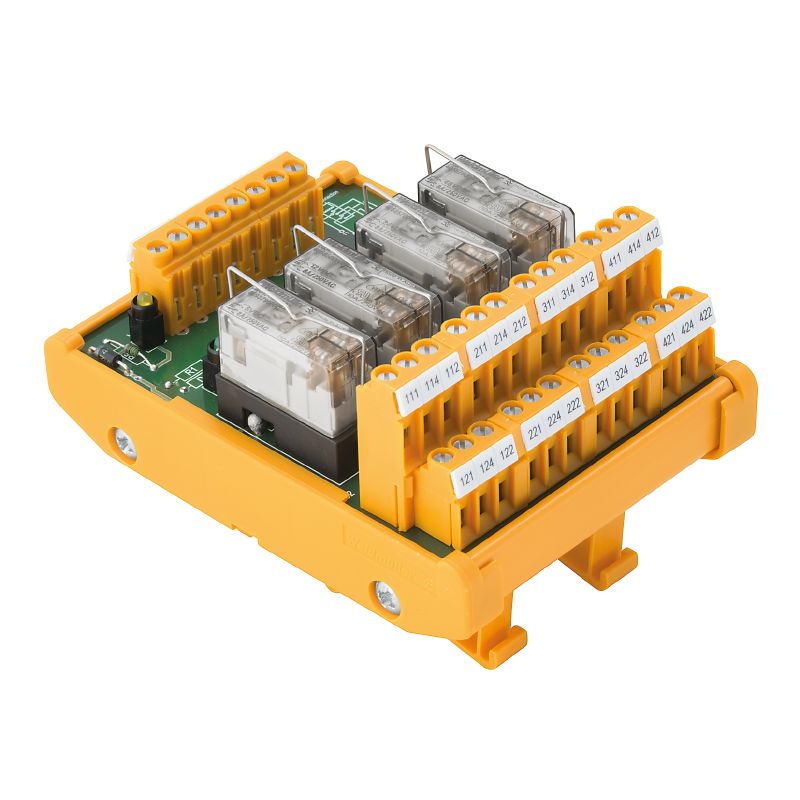

1448700000 - RSM-4 48V+ Interface Device with Reliable Screw Connection

SKU: SKU: 1448700000 Download PDF

Variant:

1448700000 - RSM-4 48V+ Interface Device with Reliable Screw Connection

Now $77.41

~~BEFORE $0.00~~ Now $77.41

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the RSM-4 48V+ 2CO S interface device, engineered for dependable connectivity with its screw connection feature This product adheres to ROHS standards and holds a UL certification, reference number E141197, ensuring quality and safety It is identifiable by the GTIN (EAN) number 4050118252866, making it easy to order Perfect for your technical needs, the RSM-4 device combines reliability and compliance seamlessly.

Features and Benefits:

•LED status display showing green for relay and yellow for supply voltage.

•Connection available on field side and control side with specific pin sizes.

Specifications:

Depth:	71 mm
Height:	109 mm
Width:	75 mm
Operating temperature:	-25...50 °C
Storage temperature:	-40...60 °C
Rated current I N:	8.7 mA
Rated voltage DC U N (supply):	48 V
Rated voltage AC U N (output):	250 V
Relay type:	RCL
Type of output:	Potential-free contact
Max. AC continuous current:	5 A
Minimum contact current:	0.1 A
Minimum contact voltage:	5 V
Mechanical service life:	30 x 10^6 switching cycles
Insulation test voltage AC:	1.2 kV
Pollution severity level:	2
