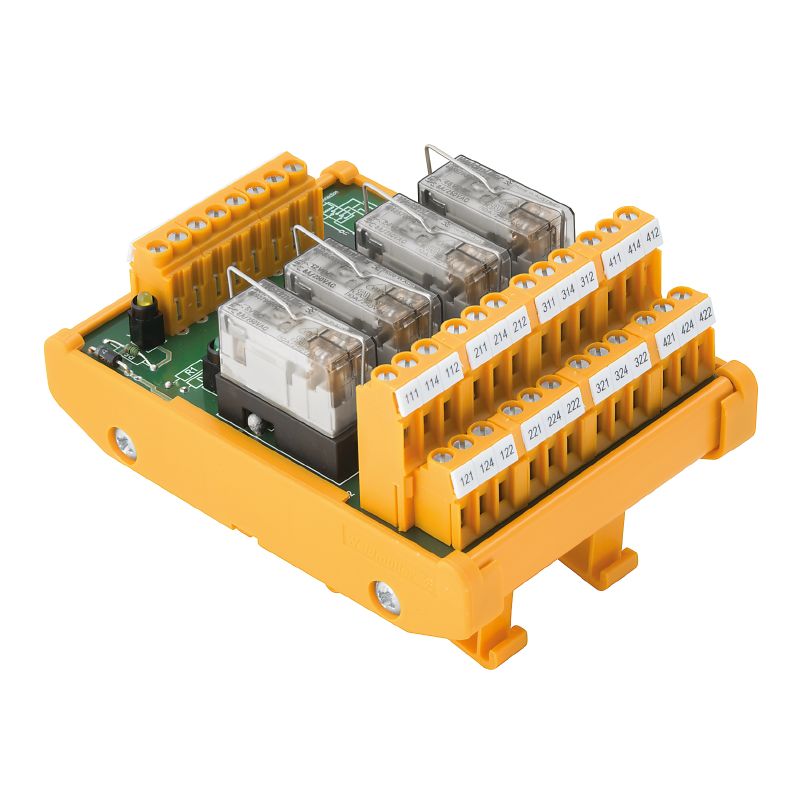

1448650000 - RSM-4 24V+ Device, -25 to 50 °C, RoHS Compliant

SKU: SKU: 1448650000 Download PDF

Variant:

1448650000 - RSM-4 24V+ Device, -25 to 50 °C, RoHS Compliant

Now $77.41

~~BEFORE $0.00~~ Now $77.41

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-4 24V+ 2CO S, a reliable device that features a sturdy screw connection and complies with RoHS standards, ensuring safety and environmental friendliness It operates efficiently within a temperature range of -25 to 50 °C, making it versatile for various uses With its durable construction, this device is engineered to meet standard safety regulations, making it an excellent choice for multiple applications.

Features and Benefits:

•Approvals: ROHS Compliant.

•Connection data includes field side connection LL2N 5.08 mm and control side connection LP 5.08 mm.

•LED status display indicates green per relay and yellow for the supply voltage.

•Offers potential-free contact with a mechanical service life of 30 x 10^6 switching cycles.

Specifications:

Depth	71 mm
Height	109 mm
Width	75 mm
Rated voltage DC U_N (supply)	24 V
Rated current I_N	16.7 mA
Input voltage	24 V DC ± 10%
Operating temperature	-25...50 °C
Max. AC continuous current	5 A
Rated voltage AC U_N (output)	≤ 250 V AC
Clamping range, max.	6 mm²
Rated output insulation voltage	250 V AC
Overvoltage category input/output	III
