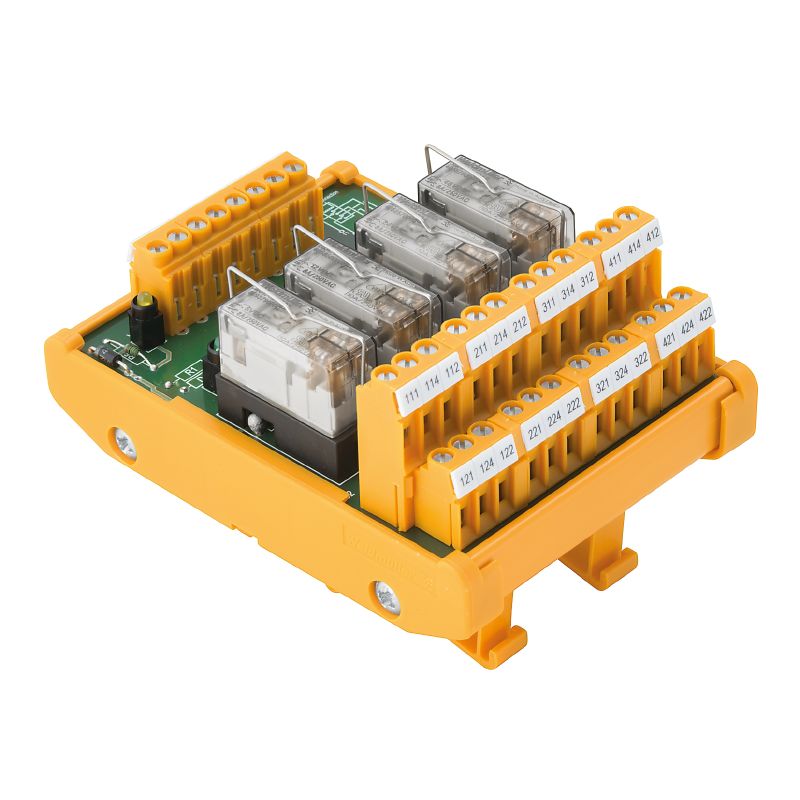

1448620000 - Compact 12V Relay Interface with Screw Connection & LED Indicators

1448620000 - Compact 12V Relay Interface with Screw Connection & LED Indicators

SKU: 1448620000 Download PDF

Variant:
  • 1448620000 - Compact 12V Relay Interface with Screw Connection & LED Indicators
Now $77.41
BEFORE   $0.00 Now $77.41
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-4 relay interface, a versatile device designed to operate at 12V Engineered with screw connections, this unit combines relay functions with seamless electrical connectivity, facilitating efficient circuit management Its compact design ensures it fits well into diverse applications You can trust its compliance with RoHS and other environmental regulations, guaranteeing safe use in electronic configurations.

For operational feedback, the RSM-4 is equipped with a green LED that signals relay activity and a yellow LED to show the supply voltage status.

Features and Benefits:

    •Screw connection type.

    •Available with a green LED status display for each relay.

    •LED indicator for supply voltage status.

    •Compliant with RoHS exemption regulations.

    •Environmentally compliant product.

Specifications:

 Depth 71 mm
 Height 109 mm
 Width 75 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Input voltage 12 V DC ± 10%
 Rated current I N 33 mA
 Relay type RCL
 Type of output Potential-free contact
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 5 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Mechanical service life 30 x 10^6 switching cycles
 Material of contacts AgNi 90/10
 Insulation test voltage AC 1.2 kV
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Rated voltage DC U N (supply) 12 V
 Rated current (supply) 1 A
 Rated voltage DC U N (input) 12 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
