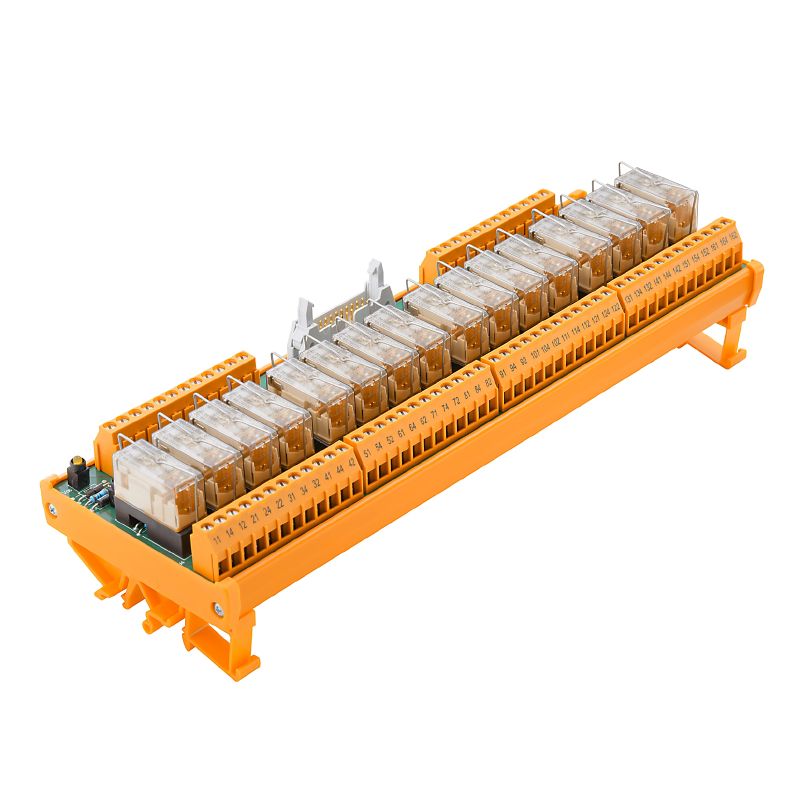

1448540000 - RSM16-I 24V Screw Connection Interface with UL Certification

1448540000 - RSM16-I 24V Screw Connection Interface with UL Certification

SKU: 1448540000 Download PDF

Variant:
  • 1448540000 - RSM16-I 24V Screw Connection Interface with UL Certification
Now $226.27
BEFORE   $0.00 Now $226.27
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM16-I 24V+ 1CO S, a highly functional interface model that utilizes a reliable screw connection Specifically engineered to perform well under set voltage and current parameters, it is capable of adapting to a variety of operational settings This product adheres to RoHS regulations and boasts UL certification for added assurance of quality Rigorous testing for mechanical longevity and insulation coordination further guarantees its dependable operation.

Features and Benefits:

    •Compliant with RoHS standards.

    •Includes UL certification (Certificate No. E141197).

    •LED status indicators for relay and supply voltage.

    •Designed for a wide range of operating temperatures.

Specifications:

 Depth 77 mm
 Height 87 mm
 Width 259 mm
 Net weight 595.06 g
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Rated voltage DC U N (supply) 24 V
 Rated current I N 16.7 mA
 Relay type RCI
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation test voltage AC 1.2 kV
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
