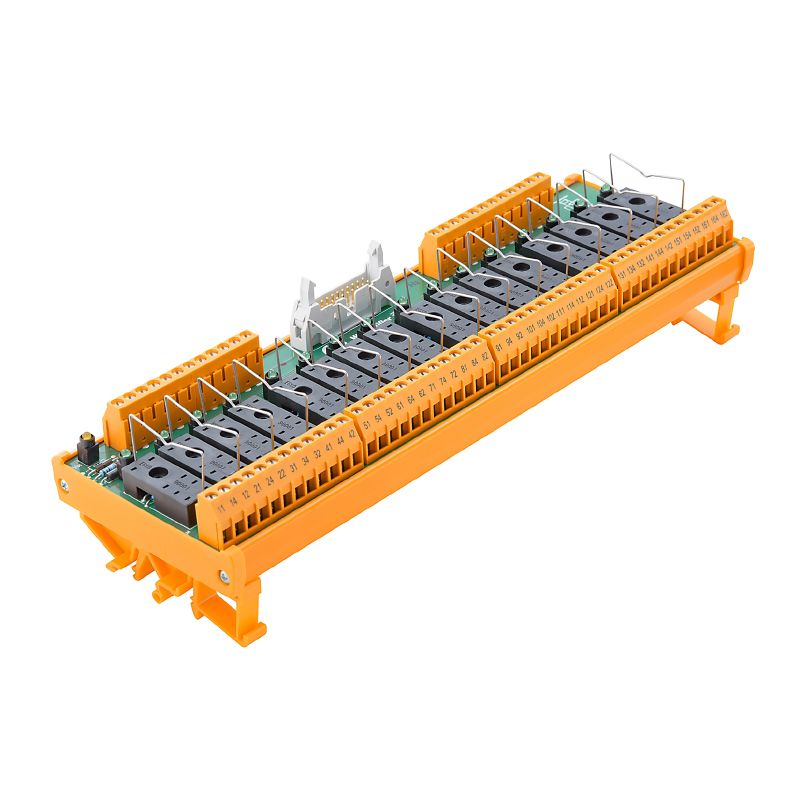

1448480000 - RSM-16 24V+ Screw-Connection Base, UL Listed

1448480000 - RSM-16 24V+ Screw-Connection Base, UL Listed

SKU: 1448480000   Download PDF

Select a Variant:
  • 1448480000 - RSM-16 24V+ Screw-Connection Base, UL Listed
Qty:
Now $164.57   Web pricing policy
BEFORE   $0.00 Now $164.57 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RSM-16 24V+ BASE S, a versatile device crafted for effortless integration, specifically featuring a user-friendly interface with screw connections This model complies with UN standards concerning lead and meets ROHS compliance, making it an environmentally responsible choice Built to UL listed standards, this device comes with a certificate number E141197, guaranteeing its dependable performance.

Please note that this model's delivery status is marked as discontinued.

Features and Benefits:

    •LED status display for each relay in green.

    •Power supply without a fuse.

    •Compatible with various types of connections.

    •Potential-free contact output.

Specifications:

 Depth 51 mm
 Height 87 mm
 Width 259 mm
 Operating temperature (UL, max) 25 °C
 Operating temperature (UL, min) 0 °C
 Rated current (input) 1 A
 Rated voltage (input) 24 V DC ± 10%
 Rated voltage (output) ≤ 250 V AC
 Max. AC continuous current 6 A
 Mechanical service life 3 x 10^7 switching cycles
 Insulation test voltage AC 1.2 kV
 Clamping range (max) 6 mm²
 Clamping range (min) 0.5 mm²
 Type of connection Screw connection
