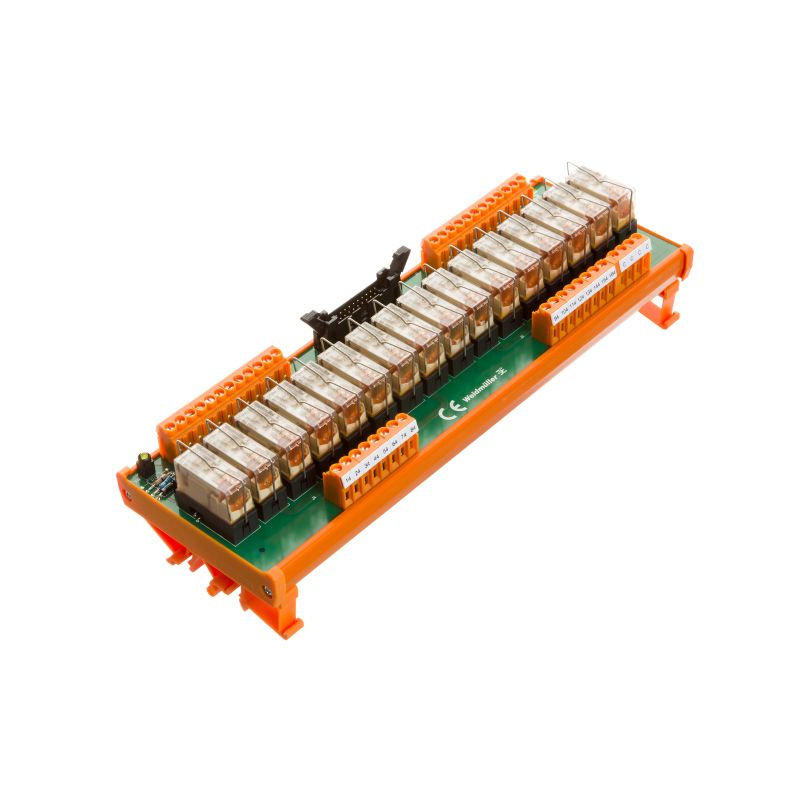

1448450000 - RSM-16 24V DC Relay, 250mm x 62mm x 87mm, Single Contact

1448450000 - RSM-16 24V DC Relay, 250mm x 62mm x 87mm, Single Contact

SKU: 1448450000 Download PDF

Variant:
  • 1448450000 - RSM-16 24V DC Relay, 250mm x 62mm x 87mm, Single Contact
Now $195.99
BEFORE   $0.00 Now $195.99
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

The RSM-16 relay operates at a 24V DC voltage and features a single normally open contact configuration, making it a reliable choice for various applications This model adheres to ROHS standards and is available for purchase until May 20, 2014 Constructed with a screw connection interface, the relay measures 250 mm in width, 62 mm in depth, and 87 mm in height, with a total weight of 398818 grams It functions efficiently within a temperature range of -25 °C to 50 °C.

Features and Benefits:

    •Operating voltage of 24V DC.

    •Single normally open contact.

    •Screw connection interface.

Specifications:

 Depth 62 mm
 Height 87 mm
 Width 250 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Rated current I N 16.7 A
 Rated voltage DC U N (supply) 24 V
 Rated current (supply) 1 A
 Rated voltage DC U N (input) 24 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 6 A
 LED status display per relay green
 Fuse per relay No
 LED status of the supply voltage yellow
 Mechanical service life 3 x 10^7 switching cycles
 Input voltage 24 V DC ± 10%
 Input current 16.7 mA
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
