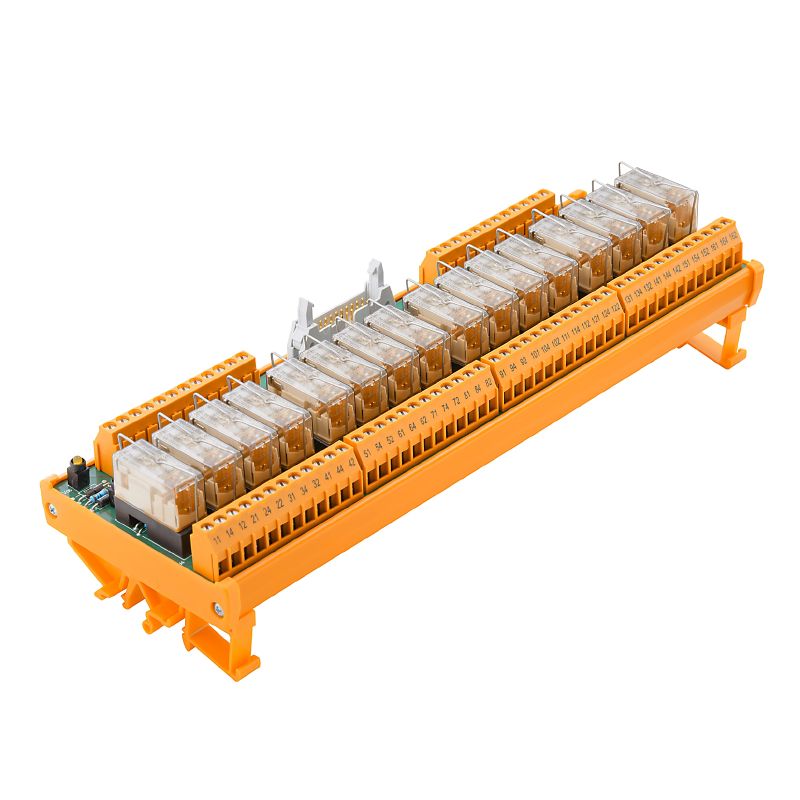

1448400000 - RSM-16 Relay, 115VAC/DC, 1CO, 66mm Depth, RoHS Certified

1448400000 - RSM-16 Relay, 115VAC/DC, 1CO, 66mm Depth, RoHS Certified

SKU: 1448400000 Download PDF

Variant:
  • 1448400000 - RSM-16 Relay, 115VAC/DC, 1CO, 66mm Depth, RoHS Certified
Now $272.00
BEFORE   $0.00 Now $272.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the RSM-16 interface relay, engineered for use with both 115VAC and 115VDC inputs and featuring a configuration of 1CO This unit has undergone rigorous testing and meets RoHS compliance standards With dimensions of 66 mm in depth, 87 mm in height, and 259 mm in width, it boasts a weight of 50485 grams This relay is built for reliability, offering a remarkable mechanical lifespan of 30 million switching cycles.

It operates efficiently within a temperature range of -25 to 50 degrees Celsius Please note that this product has been discontinued.

Features and Benefits:

    •LED status display is green.

    •Rated input voltage of 115 VAC/DC ± 10%.

    •Potential-free contact relay type.

    •Contact material is AgNi 90/10.

    •Insulation coordination rated for pollution severity level 2.

    •PUSH IN type of connection.

Specifications:

 Depth 66 mm
 Height 87 mm
 Width 259 mm
 Net weight 504.85 g
 Operating temperature UL, max. 25 °C
 Operating temperature UL, min. 0 °C
 Rated voltage AC U N (input) 115 V
 Rated voltage DC U N (input) 115 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Input voltage 115 VAC/DC ± 10%
 Input current AC 3.3 mA / DC 4.8 mA
 Max. AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation test voltage AC 1.2 kV
 Insulation input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Overvoltage category output/output II
 Clamping range, max. 2.5 mm²
 Clamping range, min. 0.12 mm²
 Flexible with sleeve, max. 2.5 mm²
 Max. wire cross-section, AWG AWG 12
 Min. wire cross-section, AWG AWG 26
 Stripping length 10 mm
