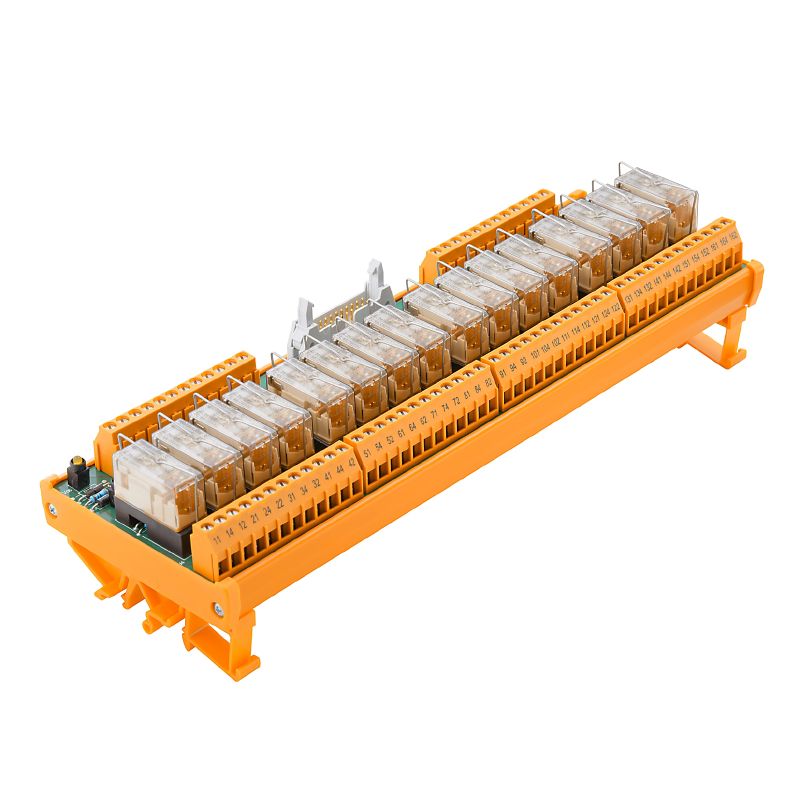

1448300000 - 24V DC Relay Module with Status LED Display

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Meet the RSM-16 24V+ 1CO Z, a reliable device that meets RoHS standards and is certified under UL File Number E141197 Ideal for integration with plug-in connectors per IEC60603-13 / DIN41651 specifications, this unit features a 20-pole plug designed for control applications Operating at a rated voltage of 24V DC for both supply and input, it remains dependable across a temperature spectrum of -25 to 50 °C.

With a clear status display, it utilizes a green LED for relay indication and a yellow LED for supply voltage monitoring Built to last, the mechanical lifespan is rated for an impressive 30 million switching cycles.

Features and Benefits:

•LED status display for relay and supply voltage.

•No fuse is required per relay and for power supply.

•20-pole control side connectivity.

•Potential-free contact type output.

Specifications:
