Description:

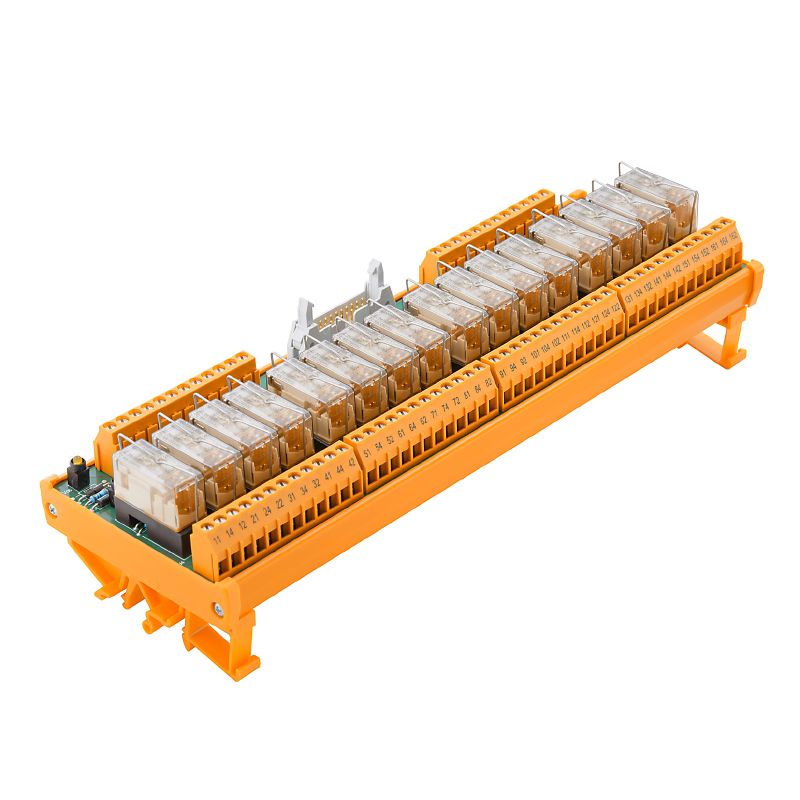

Introducing the RSM-16 12V-1CO Z relay interface, a reliable component operating at 12V DC featuring a single changeover contact With its adherence to RoHS regulations and UL certification, this relay ensures quality and compliance It's engineered to accommodate various input and output configurations, allowing for optimal performance in a range of applications.

Features and Benefits:

•Green LED status display for each relay.

•Yellow LED indicating supply voltage status.

•Connection on control side compatible with plug-in connectors.

•Mechanical service life rated for 30 x 10^6 switching cycles.

•Potential-free contact output.

•Compact design with a depth of 66 mm, width of 259 mm, height of 87 mm.

Specifications:

Depth	66 mm
Height	87 mm
Width	259 mm
Net weight	551 g
Operating temperature	-25...50 °C
Rated voltage DC U_N (supply)	12 V
Rated current (supply)	1 A
Rated voltage AC U_N (output)	250 V
Rated current I_max (output)	4.6 A
Input voltage	12 V DC ± 10%
Input current	33 mA
Relay type	RCL
Type of output	Potential-free contact
Material of contacts	AgNi 90/10
Rated voltage	≤ 250 V AC
Max. AC continuous current	6 A
Minimum contact current	0.1 A
Minimum contact voltage	5 V
Insulation coordination (EN50178)	Pollution severity level 2
Insulation test voltage AC	1.2 kV
