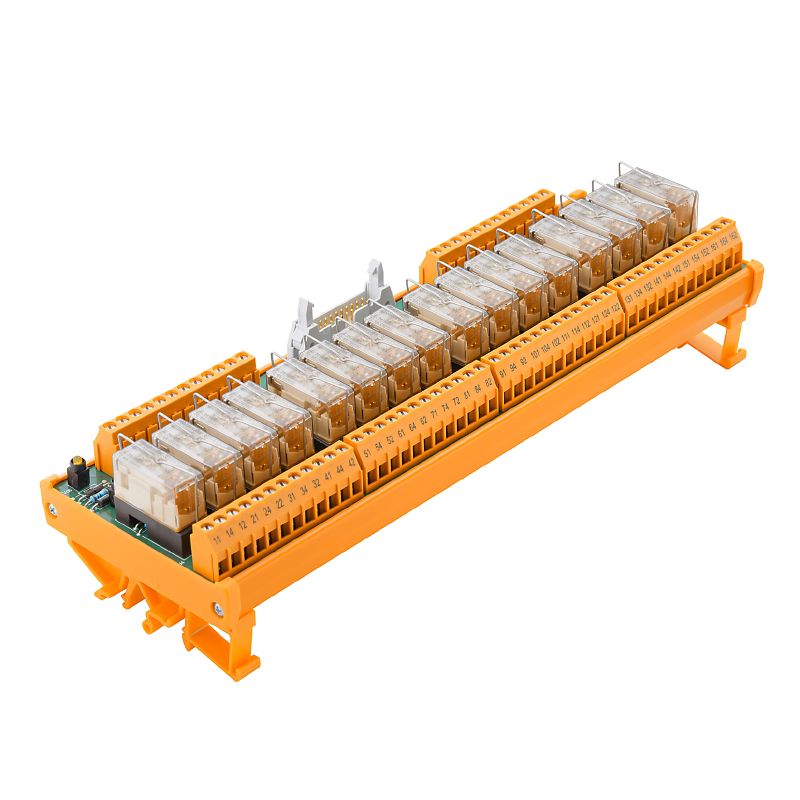

1448250000 - ROHS Certified RSM-16, 66mm x 87mm Compact Interface Device

1448250000 - ROHS Certified RSM-16, 66mm x 87mm Compact Interface Device

SKU: 1448250000 Download PDF

Variant:
  • 1448250000 - ROHS Certified RSM-16, 66mm x 87mm Compact Interface Device
Now $206.76
BEFORE   $0.00 Now $206.76
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-16 12V+ 1CO Z, a robust device equipped with a user-friendly push-in interface This model boasts ROHS compliance, confirmed by the declaration number E141197 It measures 66 mm in depth, 87 mm in height, and 259 mm in width, with a total weight of 551 grams It operates efficiently within a temperature range of -25 to 50 °C and can be stored safely between -40 to 60 °C Additionally, it meets environmental standards with specific exemptions for ROHS applications and complies with REACH SVHC regulations regarding Lead 7439-92-1.

Features and Benefits:

    •LED status display for each relay in green.

    •LED indicator for supply voltage in yellow.

    •Utilizes LMFS 5.08 mm connection on the field side.

    •Plug-in connectors in accordance with IEC60603-13 / DIN41651 specified for control side connections.

    •Mechanical service life allows for 30 million switching cycles.

    •Potential-free contact relay type facilitating diverse applications.

Specifications:

 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Rated voltage DC U N (supply) 12 V
 Rated current (supply) 1 A
 Rated voltage DC U N (input) 12 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Input voltage 12 V DC ± 10%
 Input current 33 mA
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation test voltage AC 1.2 kV
 Overvoltage category input/output III
 Overvoltage category output/output II
 Clamping range, max. 2.5 mm²
 Clamping range, min. 0.12 mm²
 Stripping length 10 mm
 Type of connection PUSH IN
 Pulse voltage test (1,2/50μs) 6 kV
 Clearance input/output ≥ 5.5 mm
