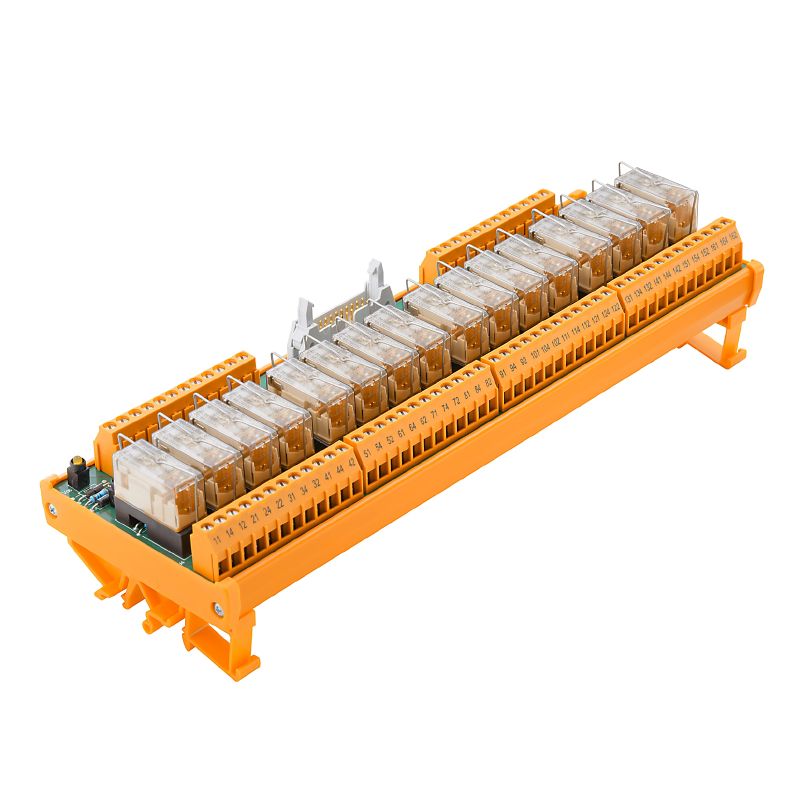

1448240000 - RSM-16 12V Interface Module, 66mm Depth, RoHS Compliant

1448240000 - RSM-16 12V Interface Module, 66mm Depth, RoHS Compliant

SKU: 1448240000 Download PDF

Variant:
  • 1448240000 - RSM-16 12V Interface Module, 66mm Depth, RoHS Compliant
Now $200.93
BEFORE   $0.00 Now $200.93
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-16 12V-1CO S, an ideal choice for interface applications featuring a reliable screw connection design This product adheres to RoHS standards and carries all necessary approvals Please note that it is marked as discontinued With measurements of 66 mm in depth, 87 mm in height, and 259 mm in width, this unit has a net weight of 678 grams, making it a compact and efficient option for your needs.

Features and Benefits:

    •LED status display shows green for relay and yellow for supply voltage.

    •Potential-free contact output.

Specifications:

 Operating temperature UL, max. 25 °C
 Operating temperature UL, min. 0 °C
 Rated current I_N 33 mA
 Rated voltage DC U_N (supply) 12 V
 Rated current (supply) 1 A
 Rated voltage DC U_N (input) 12 V
 Rated voltage AC U_N (output) 250 V
 Rated current I_max (output) 4.6 A
 Mechanical service life 30 x 10^6 switching cycles
 Input voltage 12 V DC ± 10%
 Input current 33 mA
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation coordination (EN50178) Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Overvoltage category output/output II
 Clearance input/output ≥ 5.5 mm
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Flexible with sleeve, max. 2.5 mm²
 Flexible with sleeve, min. 0.5 mm²
 Flexible, max. H05(07) V-K 4 mm²
 Flexible, min. H05(07) V-K 0.5 mm²
 Max. wire cross-section, AWG AWG 12
 Min. wire cross-section, AWG AWG 26
 Sleeve with plastic collar, max. 2.5 mm²
 Solid, max. H05(07) V-U 6 mm²
 Solid, min. H05(07) V-U 0.5 mm²
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Type of connection Screw connection
 RoHS Compliance Status Compliant with exemption
 RoHS Exemption 7a, 7cI
 REACH SVHC Lead 7439-92-1
 SCIP 71d9bdc4-a0b5-4af0-93bd-2ad4e523fb14
