1448230000 - RSM-16 Relay 66mm Depth, RoHS & UL Certified

1448230000 - RSM-16 Relay 66mm Depth, RoHS & UL Certified

SKU: 1448230000 Download PDF

Variant:
  • 1448230000 - RSM-16 Relay 66mm Depth, RoHS & UL Certified
Now $200.93
BEFORE   $0.00 Now $200.93
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

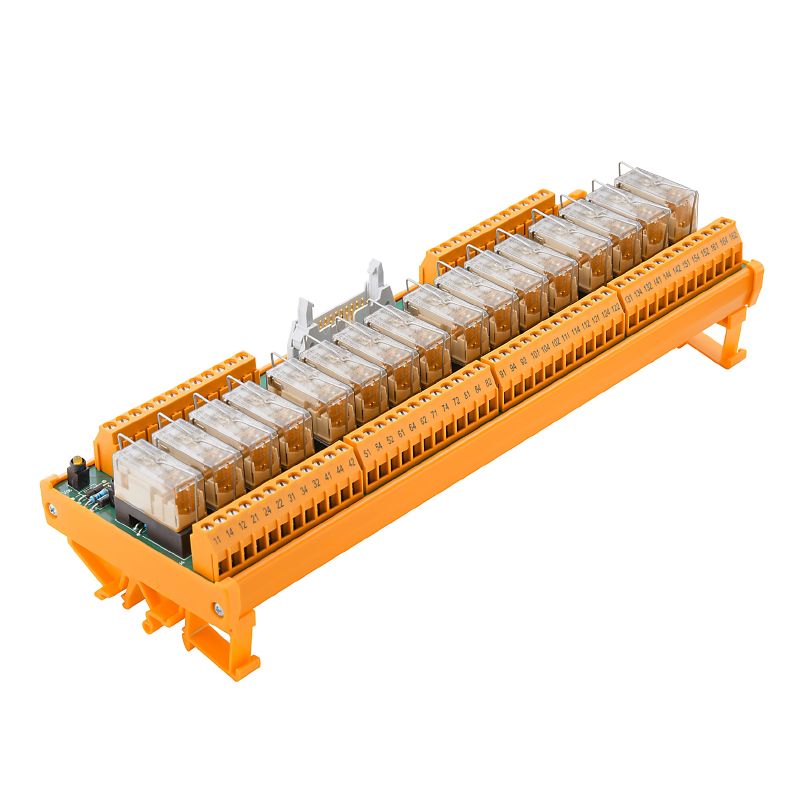

Introducing the RSM-16 12V+ 1CO S relay, engineered for reliable screw connection interfaces This device meets RoHS standards and is UL certified under file number E141197 With dimensions of 66 mm (depth), 87 mm (height), and 259 mm (width), it maintains a lightweight construction at just 651 g It functions efficiently within a temperature range of -25°C to 50°C, and can be stored safely from -40°C to 60°C.

The operational status is easily visible, thanks to its dual LED indicators—green for relay status and yellow for supply voltage Capable of handling a rated current of 46 A and a maximum AC output voltage of 250 V, this relay is a robust choice for your electrical needs.

Features and Benefits:

    •Compliant with RoHS and UL standards.

    •LED indicators for relay status and supply voltage.

    •Screw connection for easy integration.

    •High mechanical service life with 30 x 10^6 switching cycles.

Specifications:

 Operating temperature UL, max. 25 °C
 Operating temperature UL, min. 0 °C
 Rated current I N 33 mA
 Rated voltage DC U N (supply) 12 V
 Rated current (supply) 1 A
 Rated voltage DC U N (input) 12 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Input voltage 12 V DC ± 10%
 Insulation coordination (EN50178) Pollution severity level 2, Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Max. AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Connection on control side LP 5.08 + plug-in connector in acc. with IEC60603-13 / DIN41651, 20-pin
