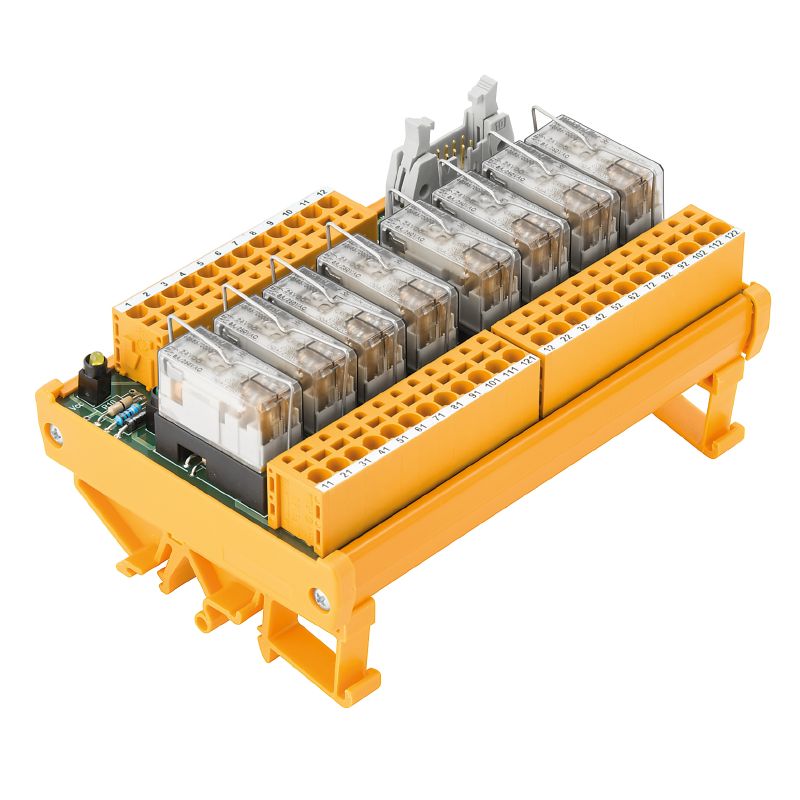

1448000000 - RSM-8 230VAC Relay with Screw Connections and UL Certification

1448000000 - RSM-8 230VAC Relay with Screw Connections and UL Certification

SKU: 1448000000   Download PDF

Select a Variant:
  • 1448000000 - RSM-8 230VAC Relay with Screw Connections and UL Certification
Qty:
Now $143.80   Web pricing policy
BEFORE   $0.00 Now $143.80 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RSM-8 model, a reliable device operating at 230VAC This unit features a potential-free contact relay and meets RoHS standards for safety It is certified with UL certificate number E141197, ensuring quality and compliance With durable screw connections, this model is ideal for a variety of applications where dependability is key.

Features and Benefits:

    •Screw connection type for easy installation.

    •Green LED status display for each relay.

    •Compliant with RoHS and UL standards.

    •Mechanical service life of up to 10 x 10^6 switching cycles.

Specifications:

 Depth 66 mm
 Height 87 mm
 Width 130 mm
 Net weight 254 g
 Operating temperature -25...50 °C
 Storage temperature -40...60 °C
 Rated current I N 3.3 mA
 Rated voltage AC U N (input) 230 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Max. AC continuous current 6 A
 Min. contact current 0.1 A
 Insulation test voltage AC 1.2 kV
 Clearance input/output ≥ 5.5 mm
 Type of connection Screw connection
