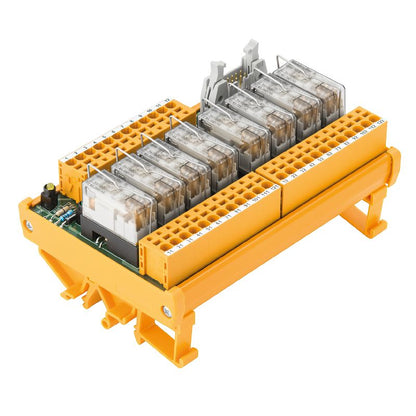

1447970000 - 24V AC/DC Interface Relay with Push-In Connections

1447970000 - 24V AC/DC Interface Relay with Push-In Connections

SKU: SKU: 1447970000   Download PDF

Select a Variant:
  • 1447970000 - 24V AC/DC Interface Relay with Push-In Connections
Qty:
Regular price Now $132.01   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $132.01 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

The RSM-8 24VAC/DC 1CO Z is a versatile device perfect for interface applications with its user-friendly push-in connections Designed for both AC and DC operations, it operates at a nominal voltage of 24V, catering to various temperature ranges This unit meets UL standards and is ROHS compliant, ensuring its reliability and safety With a robust mechanical service life of up to 30 million switching cycles, it promises dependable performance for your needs.

Features and Benefits:

    •RoHS compliant.

    •LED status display in green per relay.

Specifications:

 Depth 66 mm
 Height 87 mm
 Width 130 mm
 Net weight 247 g
 Operating temperature -25...50 °C
 Rated voltage AC U N (supply) 24 V
 Rated voltage DC U N (supply) 24 V
 Rated current (supply) 1 A
 Relay type RCL
 Type of output Potential-free contact
 Maximum AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Clamping range, max 2.5 mm²
 Min. wire cross-section, AWG AWG 26
 Stripping length 10 mm
