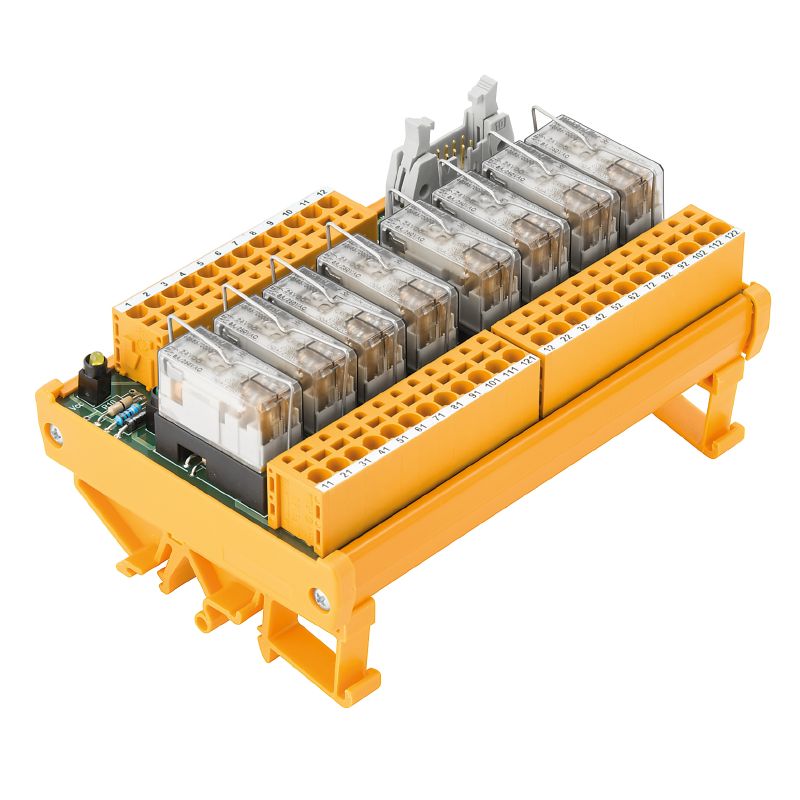

1447950000 - RSM-8 24V AC/DC Relay Interface, 66mm Deep, UL Certified

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-8 relay interface, specifically engineered for efficient control applications This versatile device operates on a 24V AC/DC input and includes a single changeover contact Built to meet RoHS standards and featuring UL certification (E141197), it guarantees reliability and compliance Measuring 130 mm in width, 87 mm in height, and 66 mm in depth, the relay has a compact design that weighs just 253 g.

It operates effectively within an extensive temperature range of -25°C to 50°C, while offering storage capabilities between -40°C and 60°C With a maximum continuous output current of 6A, the RSM-8 is an exceptional choice for various applications, delivering both performance and safety.

Features and Benefits:

•LED status display for each relay.

•Screw connection type.

•Potential-free contact output.

•Mechanical service life of 30 million switching cycles.

Specifications:
