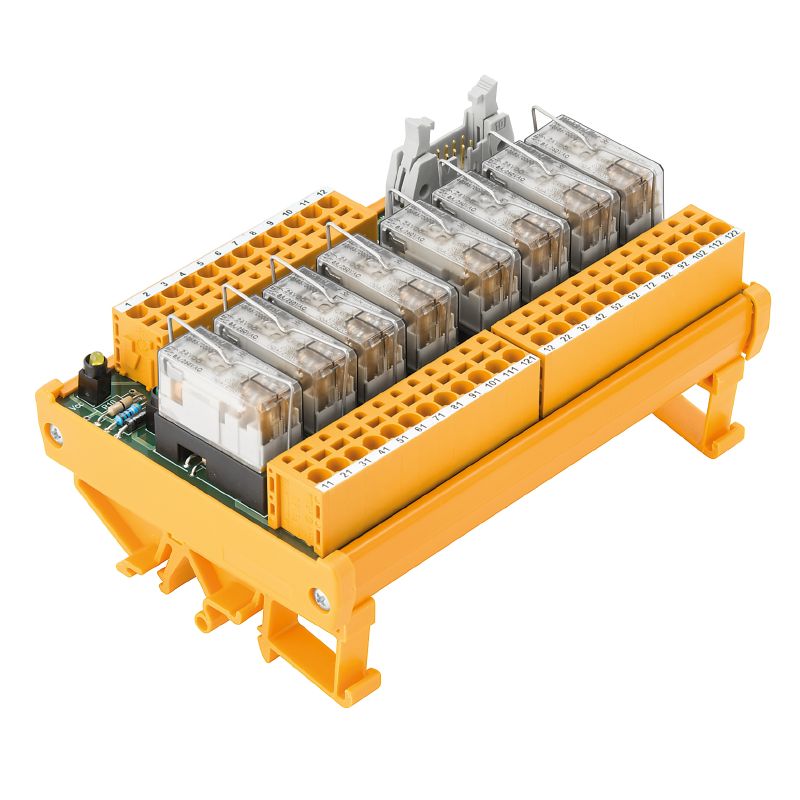

1447880000 - RSM-8 24V DC Controller, 130mm x 87mm x 66mm

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-8 24V-1CO S, an efficient component tailored for seamless control and connection via a screw interface This product is RoHS compliant, with the certificate number E141197, affirming its environmental safety It operates at both input and output voltages of 24V DC and is now a discontinued item With dimensions of 130 mm in width, 87 mm in height, and 66 mm in depth, it has a lightweight design at just 321 grams.

This component is versatile, functioning in temperatures ranging from -25 to 50 °C, and it can be stored in conditions between -40 to 60 °C, making it reliable for a variety of environments.

Features and Benefits:

•ROHS compliant.

•LED indicators for status display.

•Screw connection type.

•Rated current of 16.7 mA and a maximum output current of 6 A.

•Mechanical service life of 30 x 10^6 switching cycles.

Specifications:
