1447870000 - 24V Relay Interface with Screw Connection, -25 to 50°C Operation

1447870000 - 24V Relay Interface with Screw Connection, -25 to 50°C Operation

SKU: 1447870000 Download PDF

Variant:
  • 1447870000 - 24V Relay Interface with Screw Connection, -25 to 50°C Operation
Now $97.18
BEFORE   $0.00 Now $97.18
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

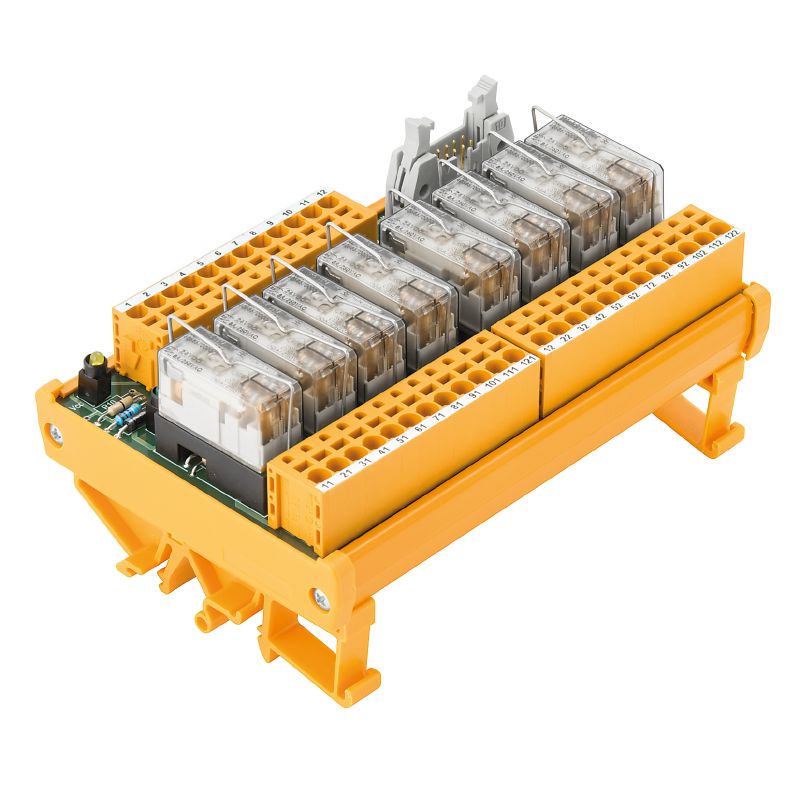

Introducing the RSM-8 24V+ 1CO S relay interface, engineered for optimal performance with a screw connection for reliable installation This device operates at a rated voltage of 24V DC and is capable of managing a maximum current of 1A It can function in a broad temperature range of -25 to 50 °C, making it trustworthy in diverse conditions With a remarkable mechanical lifespan of 30 million switching cycles, it promises long-lasting efficiency.

This relay features a potential-free contact type output and accommodates various wire sizes, all while meeting RoHS and REACH environmental regulations.

Features and Benefits:

    •Compliant with RoHS and REACH.

    •LED status display for voltage and relay state.

    •Operates effectively within a temperature range suitable for diverse applications.

    •High mechanical service life of 30 million switching cycles.

Specifications:

 Order No. 1447870000
 Dimensions (D x H x W) 66 mm x 87 mm x 130 mm
 Rated voltage (DC U_N) 24 V
 Rated current (supply) 1 A
 Rated current I_max (output) 4.6 A
 Rated voltage AC U_N (output) 250 V
 Operating temperature UL 0 to 25 °C
 Storage temperature -40 to 60 °C
 Connection field side LL 5.08 mm
 Connection control side LP 5.08 + plug-in connector in accordance with IEC60603-13 / DIN41651, 10-pin
 Material of contacts AgNi 90/10
 Max. AC continuous current 6 A
 Pollution severity level 2
 Pulse voltage test 6 kV
 Insulation test voltage AC 1.2 kV
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Clearance input/output ≥ 5.5 mm
