Description:

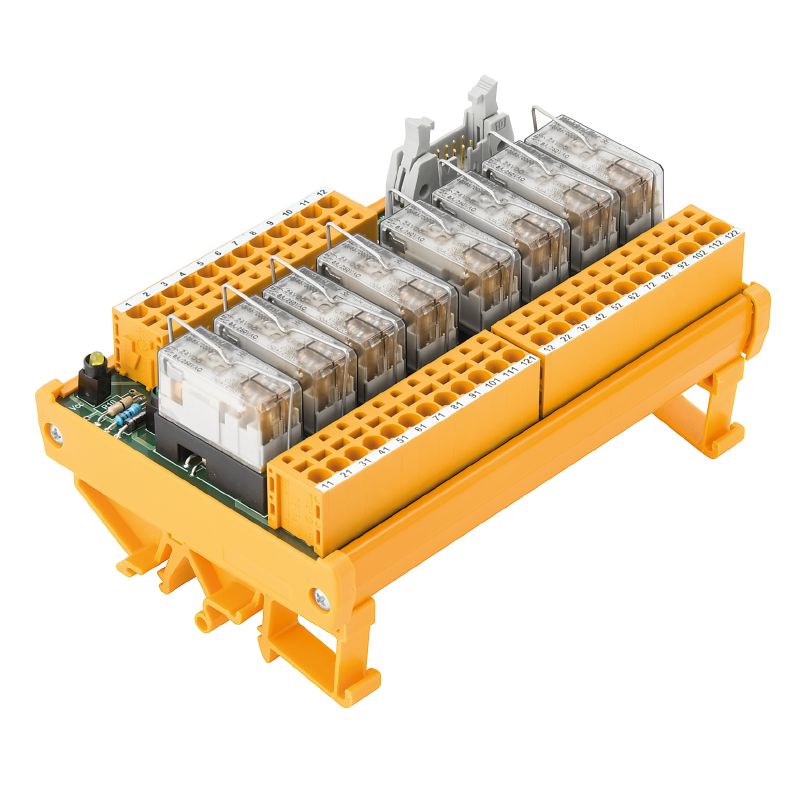

Introducing the RSM-8 12V-1CO Z electrical relay, a reliable component featuring a push-in interface that is ROHS compliance certified This product has been recognized under UL file number E141197 and is currently listed as discontinued With dimensions measuring 130 mm in width, 87 mm in height, and 66 mm in depth, this relay weighs 258 grams, making it a compact and lightweight choice for various applications.

It operates smoothly in a temperature range of -25 to 50 °C, while also withstanding storage temperatures from -40 to 60 °C This relay adheres to numerous environmental compliance standards, including specific exemptions outlined by ROHS regulations.

Features and Benefits:

•LED status display for each relay in green.

•LED indicator for supply voltage in yellow.

•Connection field side uses LMFS 5.08 mm.

•Mechanical service life rated at 30 x 10^6 switching cycles.

Specifications:

Depth	66 mm
Height	87 mm
Width	130 mm
Storage temperature	-40...60 °C
Operating temperature	-25...50 °C
Rated voltage DC (supply)	12 V
Rated current (supply)	1 A
Rated voltage AC (output)	250 V
Rated current (output)	4.6 A
Input voltage	12 V DC ± 10%
Input current	33 mA
Relay type	RCL
Type of output	Potential-free contact
Material of contacts	AgNi 90/10
Rated voltage (max)	≤ 250 V AC
Max AC continuous current	6 A
Minimum contact current	0.1 A
Minimum contact voltage	5 V
Insulation coordination	{'Pollution severity level': '2', 'Pulse voltage test': '6 kV', 'Insulation test voltage AC': '1.2 kV', 'Rated input insulation voltage': '<50 V AC', 'Rated output insulation voltage': '250 V AC', 'Overvoltage category input/output': 'III', 'Overvoltage category output/output': 'II'}
Clearance input/output	≥ 5.5 mm
Clamping range (max)	2.5 mm²
Clamping range (min)	0.12 mm²
Wire cross-section	{'Max AWG': '12', 'Min AWG': '26'}
Stripping length	10 mm
Type of connection	PUSH IN
