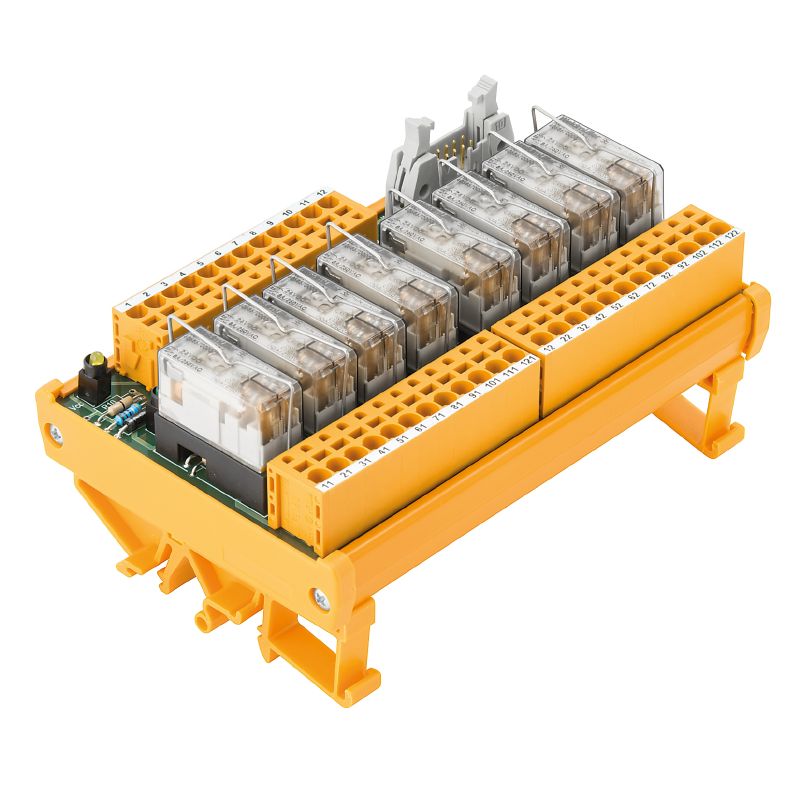

1447830000 - RSM-8 12V Relay, 1CO, 66mm Depth, Easy Screw Connection

1447830000 - RSM-8 12V Relay, 1CO, 66mm Depth, Easy Screw Connection

SKU: 1447830000 Download PDF

Variant:
  • 1447830000 - RSM-8 12V Relay, 1CO, 66mm Depth, Easy Screw Connection
Now $136.83
BEFORE   $0.00 Now $136.83
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-8 12V relay, equipped with a single changeover contact This relay adheres to RoHS standards, ensuring it meets environmental regulations, and boasts a UL file number of E141197 Featuring screw terminal connections, installation is straightforward and efficient With dimensions of 130 mm in width, 87 mm in height, and a depth of 66 mm, this relay is compact yet powerful, weighing just 335 grams.

It operates effectively within designated temperature ranges, making it a reliable choice for your electronic needs.

Features and Benefits:

    •LED status display for relay in green.

    •LED status of the supply voltage in yellow.

    •Screw connection type for reliability.

    •Long mechanical service life with 30 x 10^6 switching cycles.

Specifications:

 Depth 66 mm
 Height 87 mm
 Width 130 mm
 Operating temperature UL, max. 25 °C
 Operating temperature UL, min. 0 °C
 Rated current I N 33 mA
 Rated voltage DC U N (supply) 12 V
 Rated current (supply) 1 A
 Rated voltage DC U N (input) 12 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Connection (field side) LL 5.08 mm
 Connection on control side LP 5.08 + plug-in connector in accordance with IEC60603-13 / DIN41651, 10-pin
 Material of contacts AgNi 90/10
 Max. AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Pollution severity level 2
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Overvoltage category output/output II
 Clamping range, max. 6 mm²
 Clamping range, min. 0.5 mm²
 Max. wire cross-section, AWG AWG 12
 Min. wire cross-section, AWG AWG 26
 Stripping length 6 mm
 Tightening torque, max. 0.6 Nm
 Tightening torque, min. 0.5 Nm
 Type of connection Screw connection
