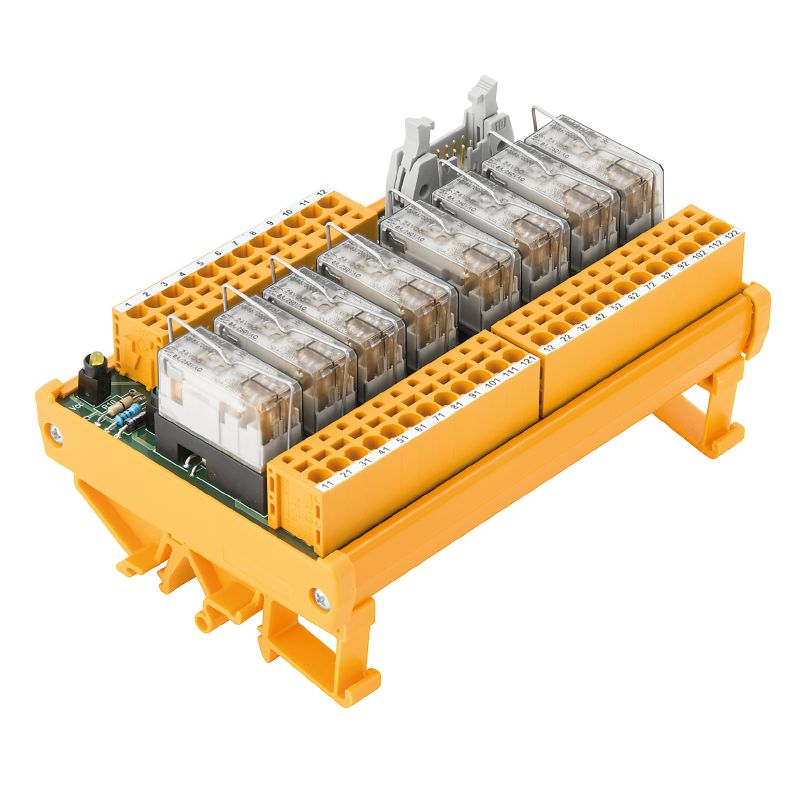

1447820000 - RSM-8 Relay Module 130mm with LED Status Indication

Description:

Introducing the RSM-8 12V+ 1CO S, a reliable component featuring a screw connection interface This unit has passed RoHS compliance testing and carries the UL File Number E141197 Although it's been discontinued, it remains a compact choice with dimensions of 130 mm in width, 87 mm in height, and 66 mm in depth, weighing just 335 g Designed for versatility, it operates efficiently in temperatures ranging from -25 °C to 50 °C.

The device includes two LEDs: a yellow one that indicates supply voltage status and a green one that shows relay status Under United Laboratories standards, it operates best within a temperature span of 0 °C to 25 °C Key specifications include a rated current of 1 A and a supply voltage of 12 V The output features a potential-free contact relay capable of handling a maximum voltage of 250 V AC, catering to a clamping range from 0.

5 to 6 mm², depending on the wire type Ideal for various applications, the RSM-8 combines performance with user-friendly features.

Features and Benefits:

•LED status display for each relay showing active states.

•Compatibility with the IEC60603-13 / DIN41651 standards for plug-in connectors.

•Ability to handle high voltage output up to 250 V AC.

•Mechanical service life rated for 30 x 10^6 switching cycles.
