1447610000 - 230V AC Relay Interface with LED Display and 10M Cycles

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

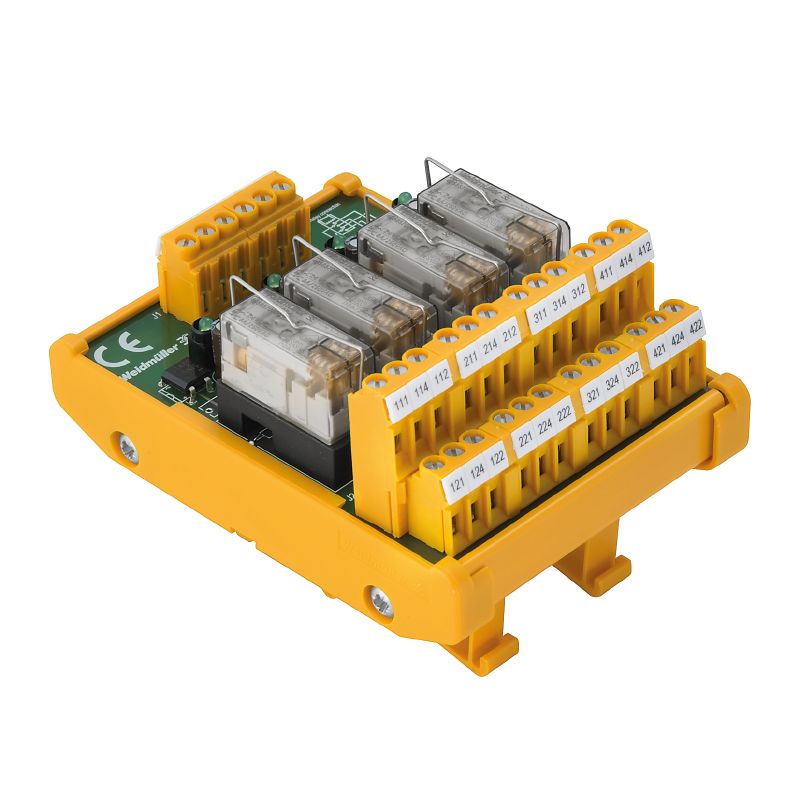

Introducing the RSM-4 relay interface, expertly engineered for a rated voltage of 230 V AC This device features a potential-free contact, ensuring versatility in applications With an impressive mechanical lifespan of 10 million switching cycles, it promises reliability and longevity Compliant with RoHS regulations, the RSM-4 also boasts a clear green LED status indicator for each relay, providing easy monitoring.

It operates efficiently in a temperature range from -25 to 50 °C and supports a maximum current of 46 A, handling output voltages up to 250 V AC The device is equipped with LMFS 508 mm connections on both field and control sides, accommodating a variety of wire cross-sections for seamless integration.

Features and Benefits:

•Green LED status display per relay.

•Compliant with RoHS regulations.

•PUSH IN connection type.

•Designed for a mechanical service life of 10 million switching cycles.

Specifications:
