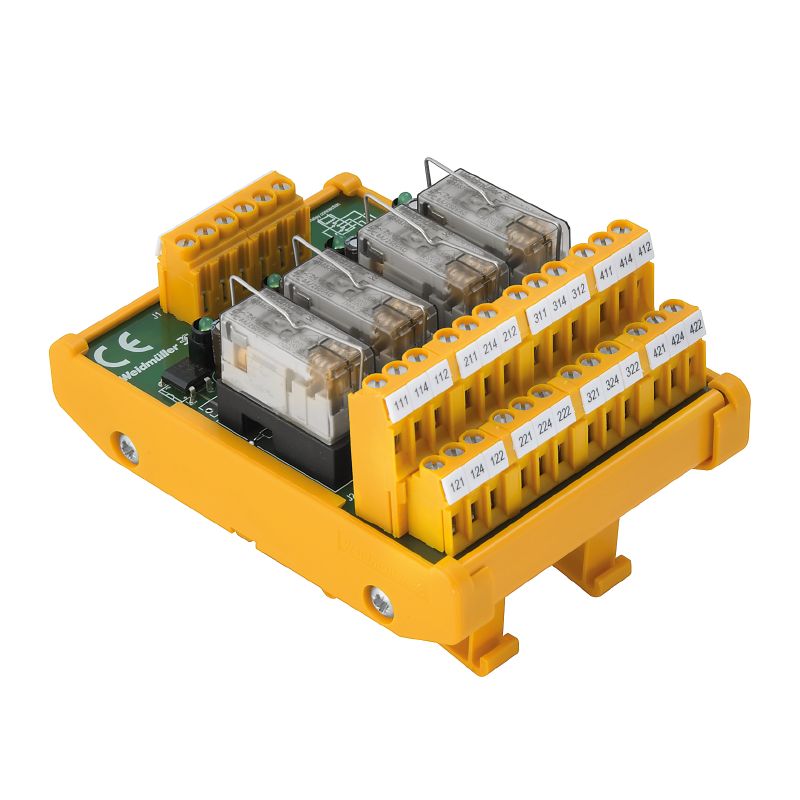

1447570000 - RSM-4 Interface Device 66mm x 87mm, RoHS Certified

1447570000 - RSM-4 Interface Device 66mm x 87mm, RoHS Certified

SKU: 1447570000   Download PDF

Select a Variant:
  • 1447570000 - RSM-4 Interface Device 66mm x 87mm, RoHS Certified
Qty:
Now $84.76   Web pricing policy
BEFORE   $0.00 Now $84.76 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RSM-4 115VAC/DC 1CO S interface device, a reliable and efficient product that connects through screw terminals It operates within defined voltage parameters and adheres to specific current ratings This device is compliant with RoHS regulations and participates in various environmental compliance initiatives Each unit is sold individually and comes with a UL certification, ensuring quality and safety.

Measuring approximately 66 mm deep, 69 mm wide, and 87 mm high, it has a compact weight of 186 grams Designed to withstand storage temperatures between -40°C and 60°C, it operates optimally within a range of -25°C to 50°C, making it suitable for various environments.

Features and Benefits:

    •Connection fields utilize screw connection types.

    •Green LED status display for relay.

    •Rated for 30 x 10^6 switching cycles for mechanical lifespan.

Specifications:

 Depth 66 mm
 Height 87 mm
 Width 69 mm
 Net weight 186 g
 Operating temperature range -25...50 °C
 Rated voltage AC U N (input) 115 V
 Rated voltage DC U N (input) 115 V
 Rated current I N 4.8 mA
 Relay type RCL
 Insulation test voltage AC 1.2 kV
 Max. AC continuous current 6 A
