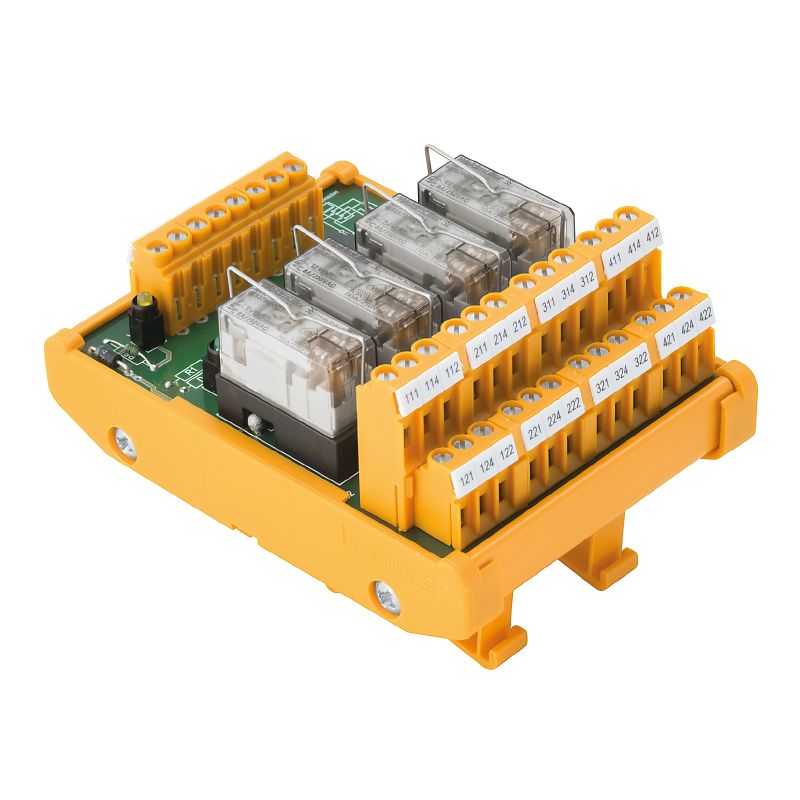

1447530000 - RSM-4 48V Relay Interface with UL Certification

1447530000 - RSM-4 48V Relay Interface with UL Certification

SKU: 1447530000 Download PDF

Variant:
  • 1447530000 - RSM-4 48V Relay Interface with UL Certification
Now $70.56
BEFORE   $0.00 Now $70.56
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the RSM-4 48V-1CO Z relay interface, a versatile solution for a variety of applications This unit boasts essential certifications, ensuring compliance with ROHS standards and accredited with the UL certificate number E141197 Please note that this model has been marked as discontinued It is designed with specific dimensions and weight that adhere to industry norms, making it suitable for numerous projects.

Features and Benefits:

    •Compliant with ROHS and has RoHS exemption 7a.

    •LED indicators for relay status display in green and supply voltage in yellow.

    •Mechanical service life rated at 30 x 10^6 switching cycles.

    •Connection type is PUSH IN allowing for ease of installation.

Specifications:

 Depth 66 mm
 Height 87 mm
 Width 69 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Rated voltage DC U N (supply) 48 V
 Rated current (supply) 1 A
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Input voltage 48 V DC ± 10%
 Input current 8.7 mA
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation coordination (EN50178) Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Overvoltage category output/output II
 Clearance input/output ≥ 5.5 mm
 Clamping range, max. 2.5 mm²
 Clamping range, min. 0.12 mm²
 Max. wire cross-section, AWG AWG 12
 Min. wire cross-section, AWG AWG 26
 Stripping length 10 mm
