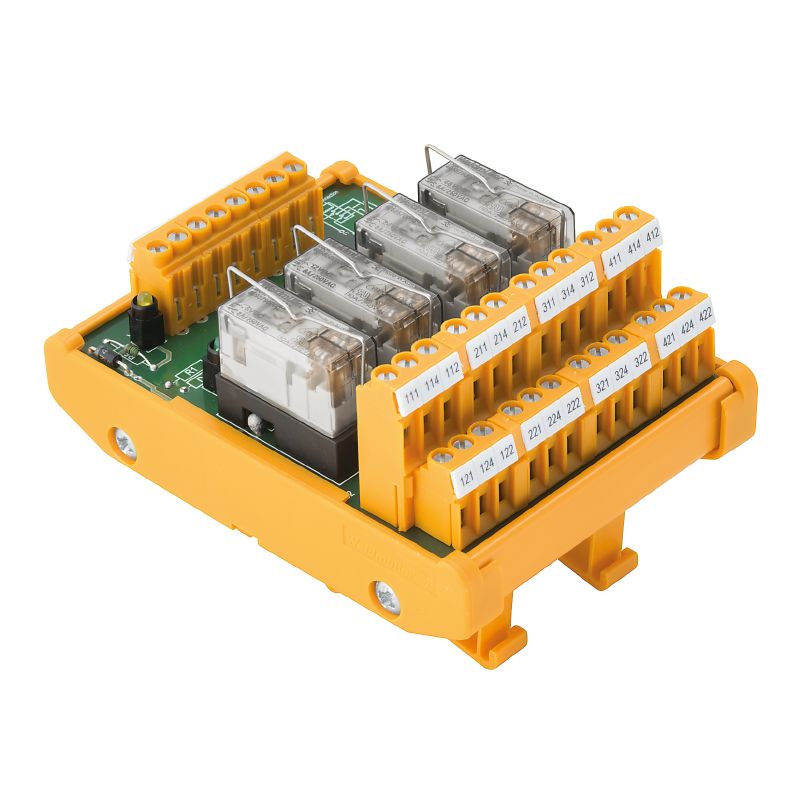

1447520000 - RSM-4 Relay 66mm Depth, ROHS Compliant with LED Status

1447520000 - RSM-4 Relay 66mm Depth, ROHS Compliant with LED Status

SKU: 1447520000   Download PDF

Select a Variant:
  • 1447520000 - RSM-4 Relay 66mm Depth, ROHS Compliant with LED Status
Qty:
Now $70.56   Web pricing policy
BEFORE   $0.00 Now $70.56 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RSM-4 48V+ 1CO Z, a reliable and compliant device upholding ROHS standards, featuring a convenient PUSH IN connection This product is recognized by the UL File Number E141197 Its compact design includes dimensions of 66 mm in depth, 87 mm in height, and 69 mm in width, with a total weight of 119148 g Engineered to perform effectively in a variety of environments, it can be stored in temperatures ranging from -40°C to 60°C and operates optimally between -25°C to 50°C.

Moreover, the device is equipped with a green LED indicator to display the relay's status, alongside a yellow LED that signals supply voltage, ensuring clear visibility and functionality.

Features and Benefits:

    •LED status display per relay is green.

    •LED status of the supply voltage is yellow.

    •Connection type for the field side and control side is LMFS 5.08 mm.

Specifications:

 Depth 66 mm
 Height 87 mm
 Width 69 mm
 Storage temperature -40 to 60 °C
 Operating temperature -25 to 50 °C
 Rated voltage DC U N (supply) 48 V
 Rated current (supply) 1 A
 Rated voltage DC U N (input) 48 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Mechanical service life 30 x 10^6 switching cycles
 Input voltage 48 V DC ± 10%
 Input current 8.7 mA
 Relay type RCL
 Type of output Potential-free contact
 Material of contacts AgNi 90/10
 Rated voltage ≤ 250 V AC
 Max. AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation coordination (EN50178) Pollution severity level 2
 Pulse voltage test (1,2/50μs) 6 kV
 Insulation test voltage AC 1.2 kV
 Clamping range, max. 2.5 mm²
 Clamping range, min. 0.12 mm²
 Max. wire cross-section, AWG AWG 12
 Min. wire cross-section, AWG AWG 26
 Stripping length 10 mm
