1447480000 - 24V Interface Relay with Push-In Connection and UL Certification

SKU: SKU: 1447480000 Download PDF

Variant:

1447480000 - 24V Interface Relay with Push-In Connection and UL Certification

Now $70.56

~~BEFORE $0.00~~ Now $70.56

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

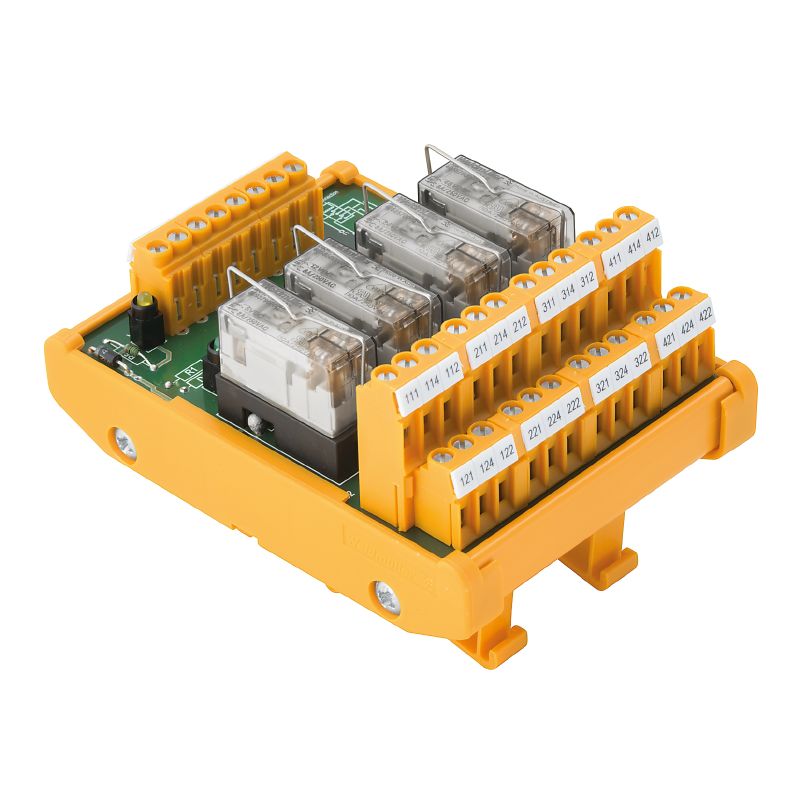

Introducing the RSM-4 24V-1CO Z, a reliable interface solution featuring push-in connection technology Meeting RoHS standards and holding UL certification (file number E141197), this product is fully compliant with essential environmental regulations, ensuring quality and safety Perfect for various applications, it combines functionality with adherence to industry standards.

Features and Benefits:

•LED indicators for relay and supply voltage status.

•PUSH IN type connection.

•Mechanical service life up to 30 million switching cycles.

Specifications:

Depth	66 mm
Height	87 mm
Width	69 mm
Net weight	111.148 g
Operating temperature	-25...50 °C
Storage temperature	-40...60 °C
Rated voltage DC U N (supply)	24 V
Rated current (supply)	1 A
Rated voltage AC U N (output)	250 V
Rated current I max (output)	4.6 A
Input voltage	24 V DC ± 10%
Input current	16.7 mA
Relay type	RCL
Type of output	Potential-free contact
Material of contacts	AgNi 90/10
Max. AC continuous current	6 A
Minimum contact current	0.1 A
Minimum contact voltage	5 V
Insulation test voltage AC	1.2 kV
