Product Information

Description:

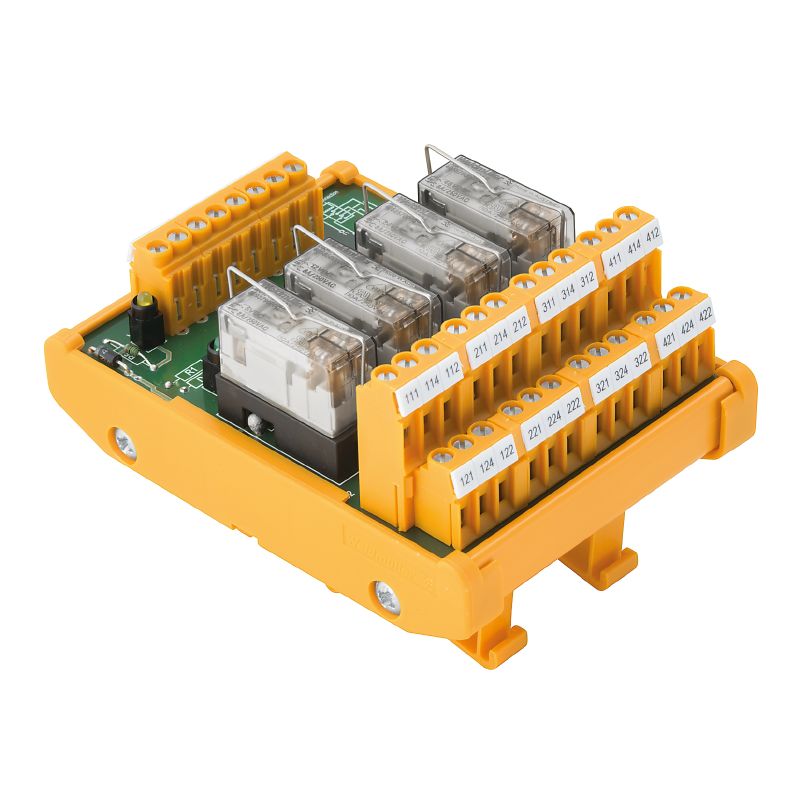

Introducing the RSM-4 24V+ 1CO Z interface relay, a robust solution for dependable control across diverse applications Operating at a rated voltage of 24V DC, this relay can handle a maximum output current of 46A Complying with RoHS standards, it has undergone rigorous testing to ensure high durability, capable of enduring up to 30 million switching cycles For added convenience, this relay includes visual LED indicators: a green LED displays the relay's operational status while a yellow LED shows the supply voltage.

With excellent insulation properties certified for pollution severity level 2, it accommodates a wide array of wiring specifications, making it a versatile choice for your control needs.

Features and Benefits:

    •Visual LED status display for both relay and supply voltage.

    •High mechanical service life rated at 30 million switching cycles.

    •RoHS compliant with exemptions for certain hazardous substances.

    •Compact design allowing for efficient space utilization in control panels.

Specifications:

 Operating temperature -25...50 °C
 Storage temperature -40...60 °C
 Rated voltage DC supply 24 V
 Rated current (supply) 1 A
 LED status relay green
 LED status supply voltage yellow
 Connection (field side) LMFS 5.08 mm
 Connection (control side) LMFS 5.08 mm
 Rated voltage DC (input) 24 V
 Rated voltage AC (output) ≤ 250 V
 Max. AC continuous current 6 A
 Minimum contact current 0.1 A
 Minimum contact voltage 5 V
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Clamping range, max. 2.5 mm²
 Clamping range, min. 0.12 mm²
 Stripping length 10 mm
 Type of connection PUSH IN
