1447430000 - 12V Relay Module, 66mm Depth, Push In Connection

1447430000 - 12V Relay Module, 66mm Depth, Push In Connection

SKU: 1447430000 Download PDF

Variant:
  • 1447430000 - 12V Relay Module, 66mm Depth, Push In Connection
Now $70.56
BEFORE   $0.00 Now $70.56
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

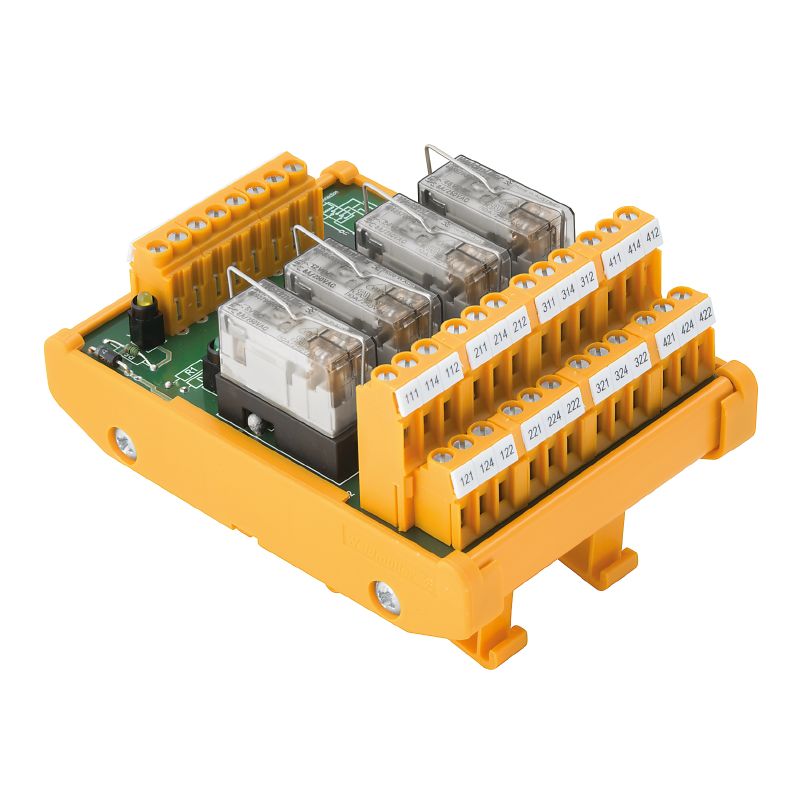

Introducing the RSM-4 relay module, engineered for seamless interfacing with a convenient PUSH IN connection With a 12V operating voltage, this module is versatile enough for a range of applications It is certified with the number E141197 and adheres to RoHS standards, ensuring environmentally friendly usage Note that this item is currently marked as discontinued The module's dimensions measure 66 mm in depth, 87 mm in height, and 69 mm in width, translating to approximately 2.

598, 3425, and 2717 inches respectively Weighing in at just 119 grams, it combines compact design with functional capability.

Features and Benefits:

    •LED status indicators for each relay: green for operation, yellow for supply voltage.

    •Connection types for both field and control sides use LMFS 5.08 mm connectors.

    •Mechanical service life rated at 30 x 10^6 switching cycles.

    •Type of output is a potential-free contact.

    •PUSH IN connection type.

Specifications:

 Depth 66 mm
 Height 87 mm
 Width 69 mm
 Storage temperature -40...60 °C
 Operating temperature -25...50 °C
 Rated voltage DC U N (supply) 12 V
 Rated current (supply) 1 A
 Rated voltage DC U N (input) 12 V
 Rated voltage AC U N (output) 250 V
 Rated current I max (output) 4.6 A
 Input voltage 12 V DC ± 10%
 Input current 33 mA
 Relay type RCL
 Material of contacts AgNi 90/10
 Max. AC continuous current 6 A
 Min. contact current 0.1 A
 Min. contact voltage 5 V
 Insulation coordination (EN50178) Pollution severity level 2
 Insulation test voltage AC 1.2 kV
 Rated input insulation voltage <50 V AC
 Rated output insulation voltage 250 V AC
 Overvoltage category input/output III
 Clearance input/output ≥ 5.5 mm
 Clamping range, max. 2.5 mm²
 Max. wire cross-section, AWG AWG 12
 Stripping length 10 mm
