1447420000 - RSM-4 Interface Module, 66mm Deep, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

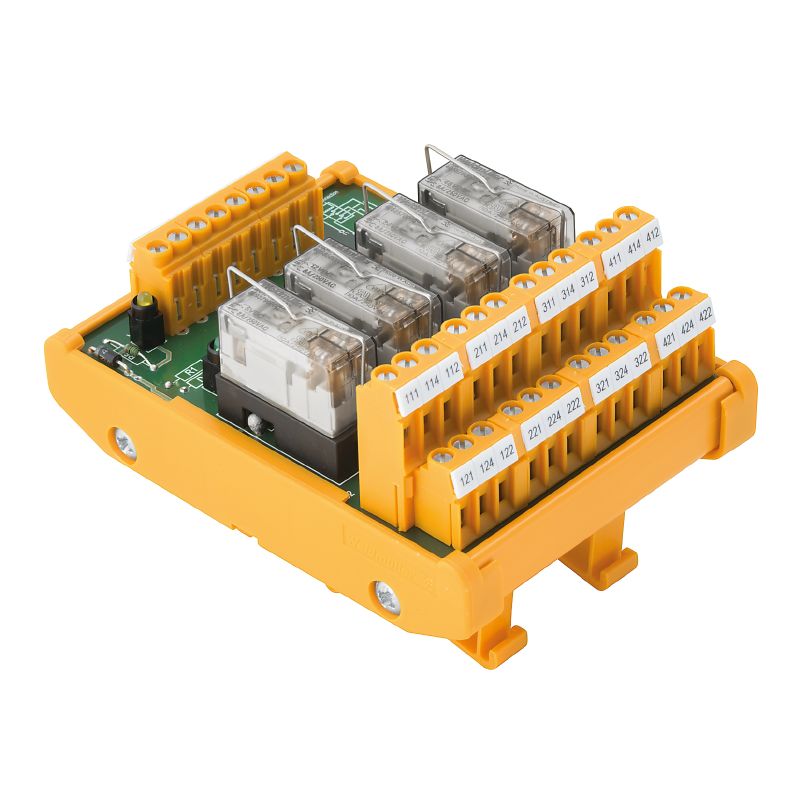

Introducing the RSM-4 12V+ 1CO Z, a versatile component tailored for interface applications, incorporating advanced push-in technology This product is RoHS compliant and holds the UL certification number E141197, assuring quality and safety standards Please note that this item has been marked as discontinued, meaning it is no longer available for new orders The dimensions of this product are as follows: a depth of 66 mm, a width of 69 mm, and a height of 87 mm, making it compact and easy to integrate into various setups.

With a net weight of 119 grams, it is lightweight yet reliable The operational temperature range spans from -25°C to 50°C, ensuring performance in a variety of environments.

Features and Benefits:

•LED status display, which shows a green indicator for each relay and a yellow indicator for the supply voltage.

•Connection on both field and control sides is via LMFS 5.08 mm.

•Mechanical service life rated at 30 million switching cycles.

•Potential-free contact type output.

Specifications:
