1447410000 - Compact RSM-4 12V Relay, 66mm Depth, UL Certified

SKU: SKU: 1447410000 Download PDF

Variant:

1447410000 - Compact RSM-4 12V Relay, 66mm Depth, UL Certified

Now $64.11

~~BEFORE $0.00~~ Now $64.11

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

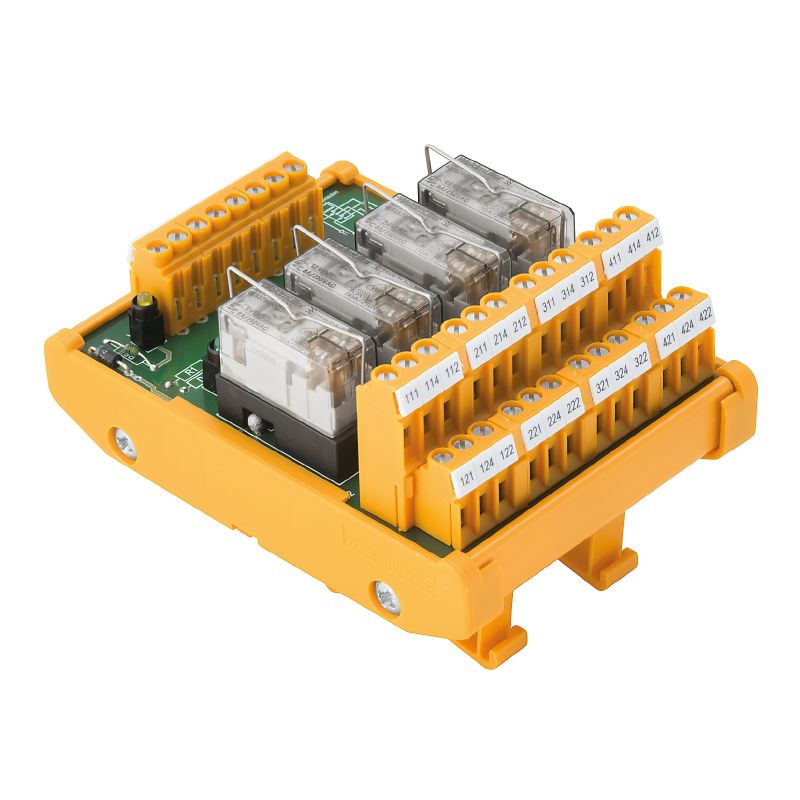

Ensure dependable control with the RSM-4 12V-1CO S, featuring a user-friendly screw connection interface This product meets RoHS regulations and proudly holds UL certification (number E141197) Its compact design boasts dimensions of 66 mm in depth, 87 mm in height, and 69 mm in width, making it an ideal choice for various applications.

Features and Benefits:

•LED status display showing green for relay and yellow for supply voltage.

•Potential-free contact output type.

•Robust mechanical lifespan with 30 million switching cycles.

•Max. AC continuous current of 6 A.

Specifications:

Depth	66 mm
Height	87 mm
Width	69 mm
Net weight	180 g
Operating temperature	-25...50 °C
Rated voltage DC U N (supply)	12 V
Rated current I N	33 mA
Relay type	RCL
Input voltage	12 V DC ± 10%
Rated voltage AC U N (output)	250 V
Rated current I max (output)	4.6 A
Materials of contacts	AgNi 90/10
Input/output overvoltage category	III
Rated input insulation voltage	<50 V AC
Rated output insulation voltage	250 V AC
Clamping range max	6 mm²
Clamping range min	0.5 mm²
Tightening torque max	0.6 Nm
Tightening torque min	0.5 Nm
Stripping length	6 mm
