1397820000 - RoHS Compliant Interface Device, 95mm Depth, 190mm Width

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

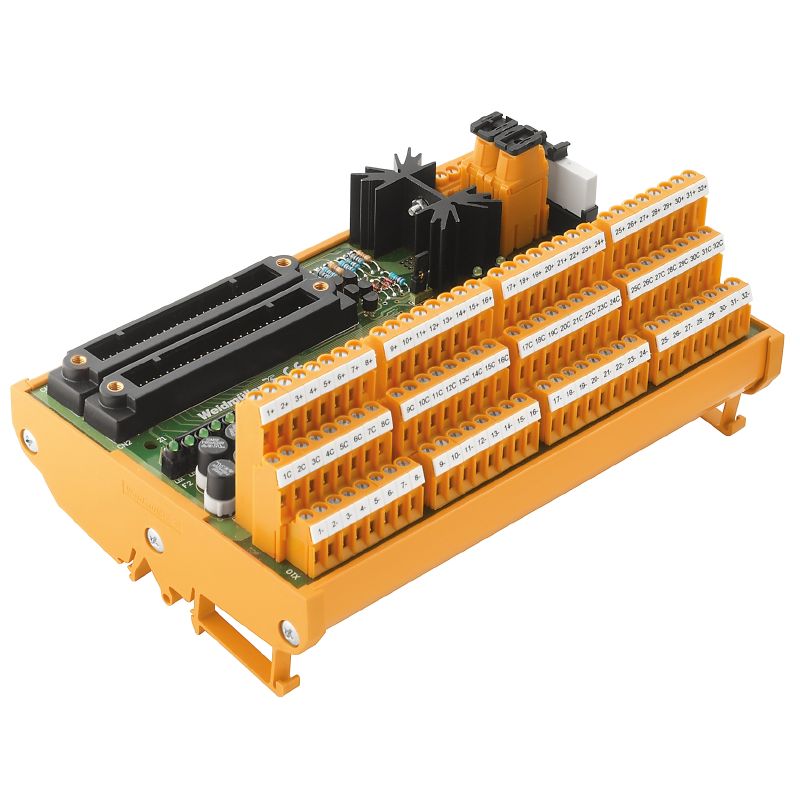

Discover the TBY-ADV151-PS-F-L-2KB-S, a product that adheres to RoHS standards, featuring an interface compatible with RS and equipped with 2 x AKB (50P) and LL3R 508 mm connections Weighing in at 638154 grams, this unit boasts dimensions of 95 mm in depth, 131 mm in height, and 190 mm in width It operates efficiently in a temperature range from -25°C to 70°C, while its storage capabilities extend from -40°C to 85°C.

Safety is prioritized with each channel protected by a 100 mA fuse and a 2 A rated power supply fuse A green LED indicator provides visibility into supply voltage status, and it features a no-disconnection setup per channel Additionally, this model supports various clamping ranges and includes specific requirements for tightening torque, ensuring versatile functionality for diverse applications.

Features and Benefits:

•Compatible with 50-pole plugs.

•LED status display is green for each channel.

•No disconnection per channel.

•Fuse protection of 100 mA per channel.

•Compliant with RoHS exemption.

•Maximum current rating of 2 A.

Specifications:
