1395370000 - Compact 80mm Device, RoHS Compliant, 24V DC Operation

Description:

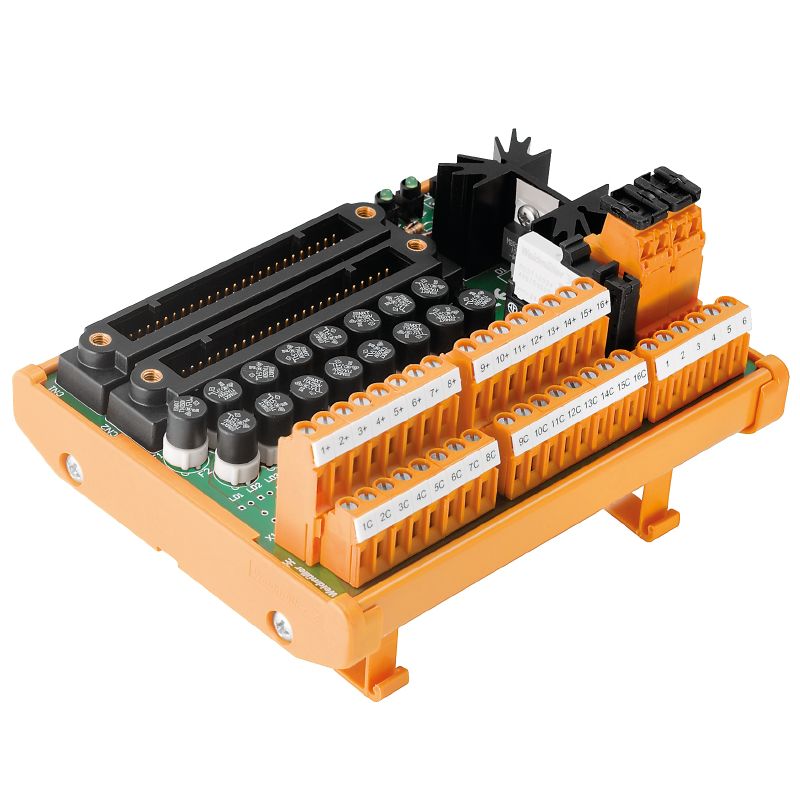

Introducing the TBY-SDV144-F-PS-2KB-S model, a versatile device designed with environmental compliance in mind This compact unit measures 80 mm deep, 109 mm tall, and 134 mm wide, with a lightweight design of just 308 grams It operates efficiently within a temperature range of -25 to 70 °C and can be stored between -40 and 85 °C The device adheres to RoHS compliance, ensuring that it meets stringent environmental safety standards.

While it does not provide individual channel LED status displays or disconnection capabilities, it features a 100 mA fuse for each channel and includes a green LED indicator to show the supply voltage status On the control side, connections are facilitated through a 50-pole plug while the field side is equipped with LP2N 508 mm connectors, allowing for reliable hookups Designed to operate at a 24 V DC voltage, this device boasts a maximum current capacity of 1 A, ensuring dependable performance and safety ratings for insulation.

Features and Benefits:

•Compliant with RoHS exemption.

•No LED status display per channel.

•No disconnection capabilities per channel.

•Includes fuses for individual channels at 100 mA.

•Equipped with a green LED for supply voltage status.
