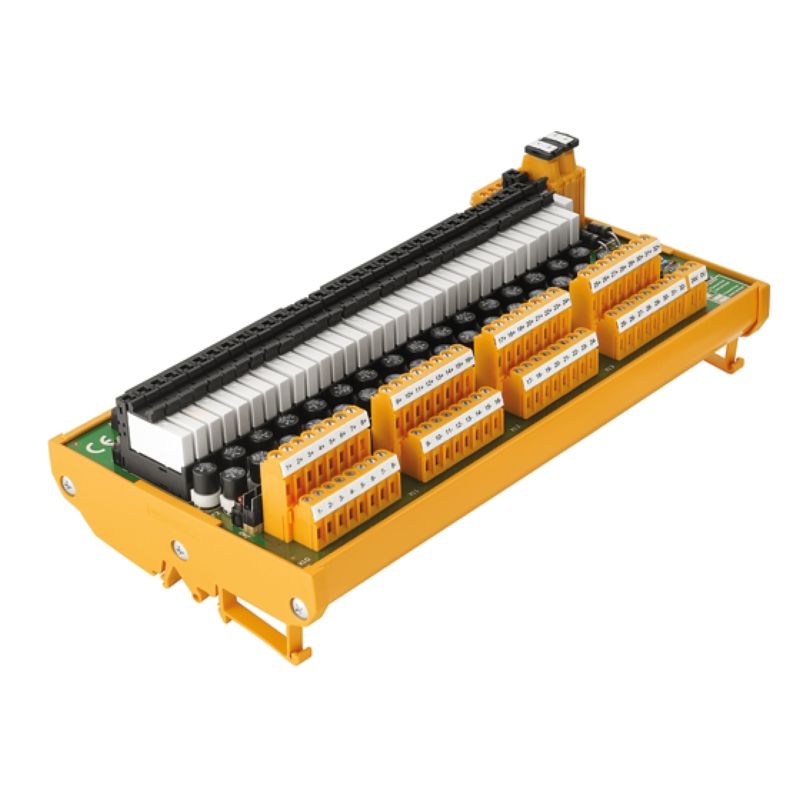

1384250000 - Compact 48V DC Device Interface with Dual AKB Connections

1384250000 - Compact 48V DC Device Interface with Dual AKB Connections

SKU: 1384250000 Download PDF

Variant:
  • 1384250000 - Compact 48V DC Device Interface with Dual AKB Connections
Now $806.00
BEFORE   $0.00 Now $806.00
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TBY-ADV151-48-PS-2KB-Z, an efficient solution for connecting with RM devices This compact unit features dual AKB connections and operates with a 48 V DC input, delivering a reliable maximum output of 10 mA Built to meet RoHS compliance, it offers essential protections for the environment Its robust design ensures a mechanical lifespan of around 5 million switch cycles, making it a durable choice for various demanding applications.

Features and Benefits:

    •RoHS compliant with exemption.

    •LED status display shows green for relay operation.

    •Compact dimensions facilitate installation in tight spaces.

    •Supports tension-clamp connections for ease of use.

Specifications:

 Input voltage 48 V DC ± 10%
 Input current 7 mA (fuse on) / 0.5 mA (fuse off)
 Relay type RSS
 Material of contacts AgNi gold-plated
 Rated voltage 18…30 V DC
 Max. DC continuous current 10 mA
 Minimum contact current 1 mA
 Minimum contact voltage 1 V
 Insulation coordinates (EN50178) {'Rated input insulation voltage': '≤ 50 V DC', 'Rated output insulation voltage': '≤ 50 V DC', 'Overvoltage category input/input': 'III', 'Overvoltage category input/output': 'III', 'Overvoltage category output/output': 'III', 'Pollution severity level': '2'}
 Pulse voltage test (1,2/50μs) 1.5 kV
 Insulation test voltage AC 0.35 kV
 Clearance input/output ≥ 5.5 mm
 Clamping range (max) 2.5 mm²
 Clamping range (min) 0.13 mm²
 Stripping length 7.5 mm
 Wire cross-section (min. AWG) AWG 14
 Wire cross-section (max. AWG) AWG 24
