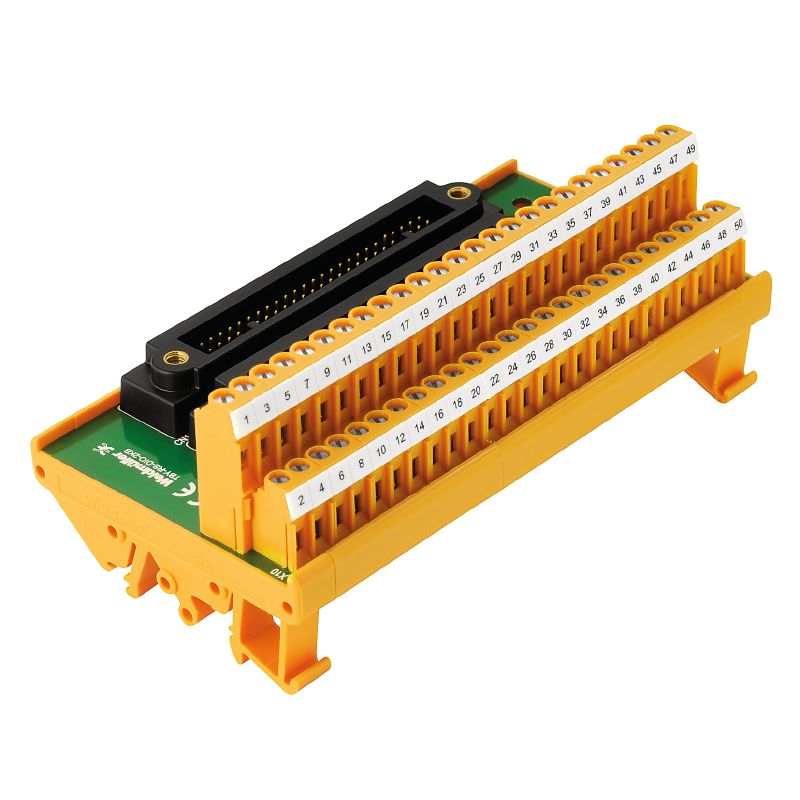

1384090000 - 135mm RS Interface Module with 2 x AKB Connections

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TBY-C3-UNIV-2KB-S, a versatile solution tailored for RS interface applications This model features a configuration of 2 x AKB (50P) and accommodates a connection size of 508 mm It adheres to RoHS regulations and is backed by multiple approvals, ensuring its reliability Measuring 135 mm in width, 70 mm in height, and 56 mm in depth, this unit has a net weight of 1819 grams, making it compact yet functional.

It supports an operating voltage from 50 V AC to 70 V DC, featuring a maximum current capacity of 1 A per channel With an insulation voltage rated below 50 V AC and a surge voltage category of III, it is designed for environmental robustness and falls under pollution severity level 2.

Features and Benefits:

•Compliant with RoHS with exemption 6c.

•No LED status display per channel.

•No disconnection option per channel.

•Screw connection for both field and supply connections.

•Maximum clamping range of 6 mm².

•Tightening torque of 0.5 to 0.6 Nm.

Specifications:
