1384080000 - 135mm RS Connector Interface, 70mm High, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

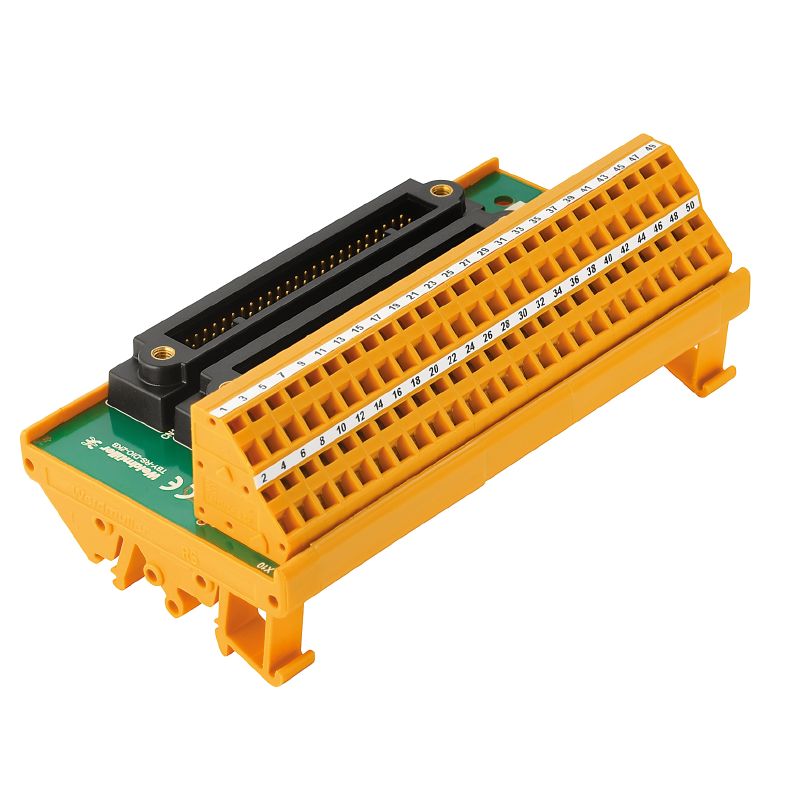

Introducing the TBY-C3-UNIV-2KB-Z, a compact and robust solution that adheres to RoHS standards This unit features a connection interface comprising RS and 2 x AKB (50P), designed with a pitch of 508mm While this item has been discontinued, its specifications remain noteworthy With dimensions measuring 135 mm in width, 70 mm in height, and a depth of 52 mm, it is lightweight at just 157 g The operating temperature range spans from -25 °C to 70 °C, while it can be stored safely between -40 °C and 85 °C.

Please note that this model does not come equipped with a channel status display, disconnection features, or any voltage and current testing points, contactors, or fuses For connectivity, it utilizes an LM2NZF 508mm connector on the field side and incorporates a 50-pole plug for the control side This product operates efficiently at a voltage rating of 50 V AC and 70 V DC, supporting a maximum current of 1 A.

Insulation ratings indicate it can handle a maximum insulation voltage of less than 50 V AC, classified under surge voltage category III and pollution severity level 2, with a pulse voltage test rating of 08 kV.

Features and Benefits:

•Compliant with RoHS.

•Depth of 52 mm.

•Height of 70 mm.

•Width of 135 mm.

•Net weight of 157 g.

•Operating temperature from -25 to 70 °C.

•Storage temperature from -40 to 85 °C.

•Connected via tension-clamp connection.

Specifications:
