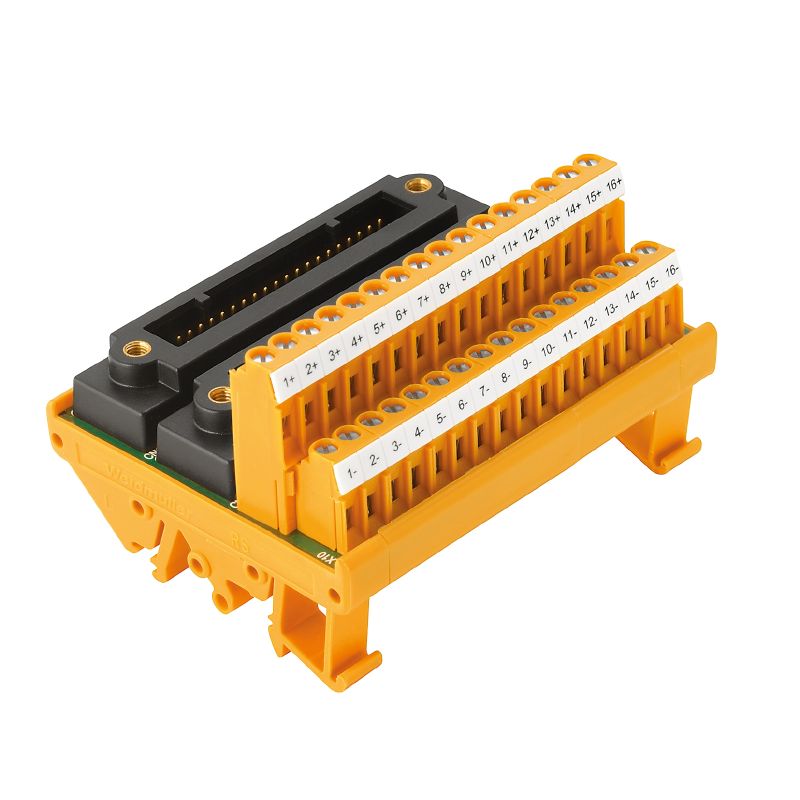

1371580000 - RoHS Compliant 90mm Control Module with 40-Pole Plugs

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This device meets RoHS compliance and boasts dimensions of 90 mm in width, 70 mm in height, and 56 mm in depth, with a lightweight of 156 g It can withstand storage temperatures from -40 to 85 °C and operates effectively between -25 and 70 °C Equipped with 40-pole plugs on the control side, it utilizes LL2N interfaces of 508 mm on the field side The product operates at voltages of 50 V AC or 70 V DC, accommodating a maximum current of 1 A per channel, making it suitable for diverse applications.

Features and Benefits:

•RoHS Compliant with exemption.

•LED status display not available per channel.

•No disconnection functionality per channel.

•Supports screw connection type.

•Max wire cross-section of AWG 12.

Specifications:
