Description:

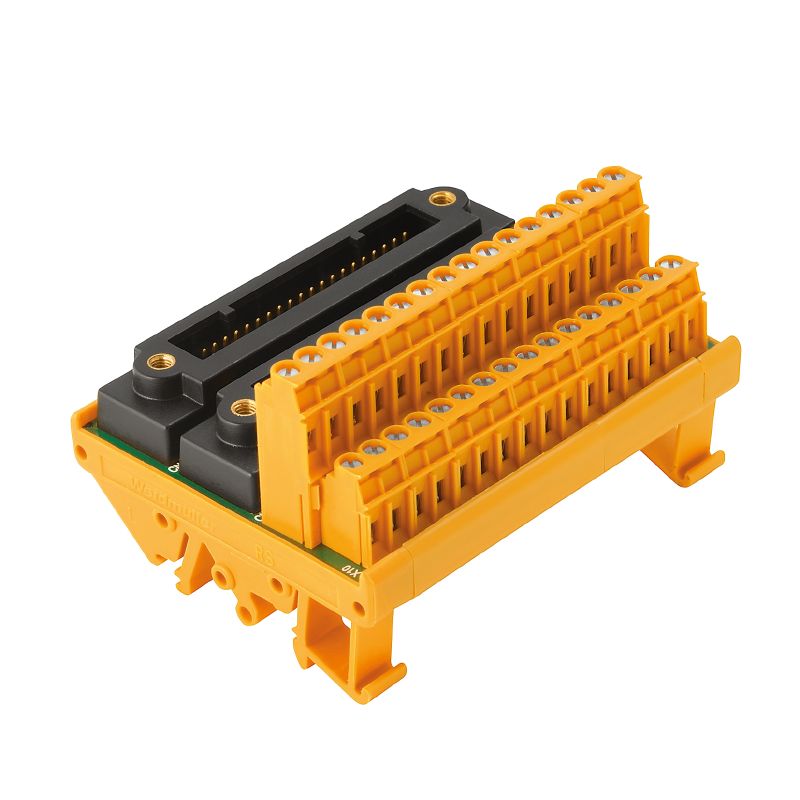

Introducing the TBY-C3-AIO-2KS-S, a versatile device tailored for multiple applications It boasts an interface that includes RS and dual 40-pin KS connections, all arranged with a 508 mm pitch This compact unit measures 56 mm deep, 70 mm high, and 90 mm wide, weighing in at 12545 grams Its functionality remains reliable in a temperature range from -25 to 70 °C, and it can be safely stored in conditions from -40 to 85 °C.

Compliant with RoHS standards and specifically exempt from lead regulations under exemption 6c, this device features a channel-specific status display However, it does not include disconnection options, test points, contactors, or fuses, nor does it have a supply voltage LED indicator For connectivity, it accommodates an LL2N 508 mm interface on the field side and a 40-pole plug on the control side.

Each channel supports a maximum current of 1 A, with an operational voltage of 50 V AC or 70 V DC.

Features and Benefits:

•RoHS compliant with exemption.

•No LED status display per channel.

•Operating temperature range from -25 to 70 °C.

•Storage temperature range from -40 to 85 °C.

Specifications:
