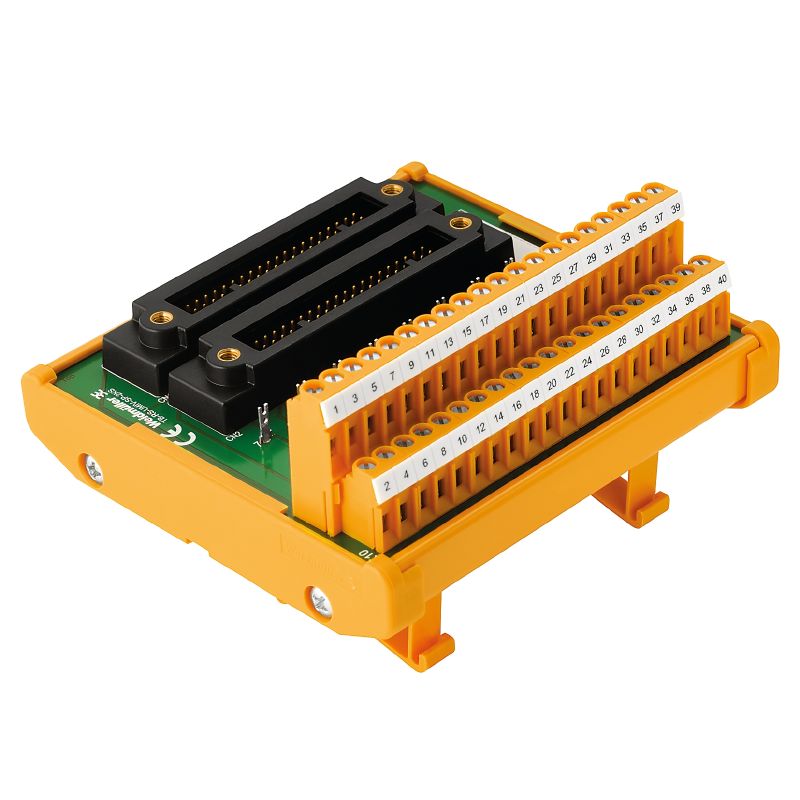

1371340000 - RS Interface Module, 70mm Depth, 40 Poles, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TBY-RS-UNIV-SP-2KS-S, a high-performance unit featuring an RS interface With compact dimensions of 70 mm in depth, 109 mm in height, and 112 mm in width, this lightweight device weighs only 202 g It is RoHS compliant, ensuring environmentally-friendly use The operational temperature range for this model is impressive, functioning between -25°C and 70°C, while storage capabilities extend from -40°C to 85°C.

Designed for versatility, it includes 40 poles on the control side and accommodates clamping ranges tailored for both solid and flexible wires: 013 mm² to 6 mm² for solid wires and 05 mm² to 25 mm² for flexible wires This unit effectively operates at 50 V AC or 70 V DC, with a maximum current rating of 1 A applicable for both common and per-channel usage.

Features and Benefits:

•RoHS compliant with exemptions.

•Soldering tags for test points.

•No LED status displays for channels.

•No disconnection per channel or supply voltage indication.

•Screw connection type for all connections.

Specifications:
