1371250000 - Reliable 40P Interface Connector, LED Indicators, 107mm Depth

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

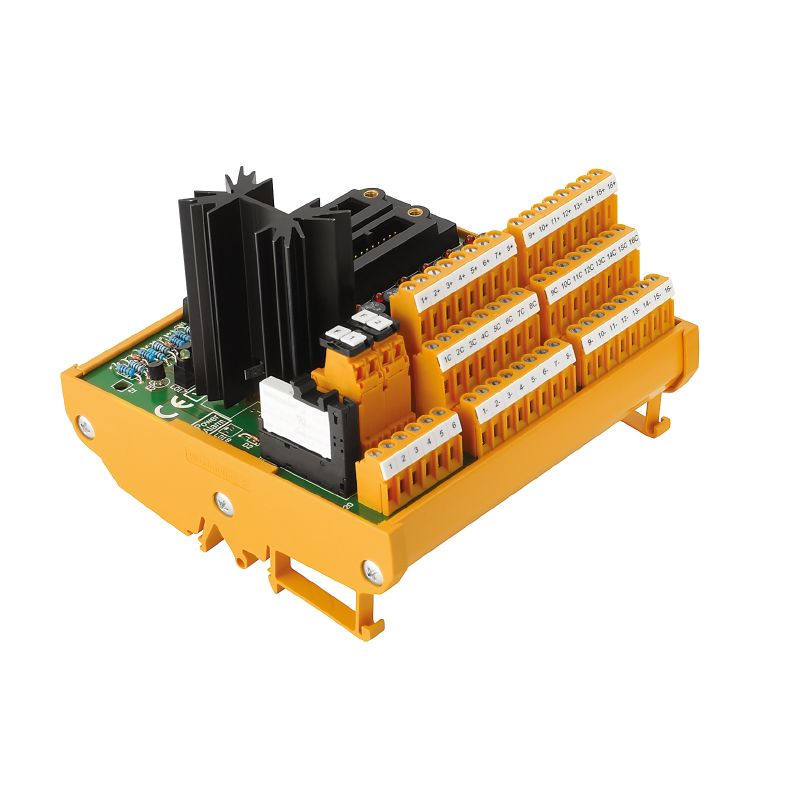

Introducing the TBY-SAI143-F-L-PS-2KS-Z interface connector, engineered for optimal performance This component features dual KS (40P) connectors on the control side, complemented by an LM3NZF 508mm configuration on the field side With a reliable operating voltage of 24 V DC, it accommodates a maximum current of 1 A for each channel, ensuring efficient functionality Designed with user-friendly LED indicators, it provides real-time information on supply voltage and channel status.

The product meets RoHS environmental standards and operates effectively within a temperature range of -25 to 70 °C Compact in size, the connector measures 107 mm in depth, 131 mm in height, and 133 mm in width, with a weight of 4034 g This connector is built to deliver dependable performance across a variety of applications, making it an excellent choice for your connectivity needs.

Features and Benefits:

•LED status display for supply voltage and each channel.

•Compatible with LM3NZF 5.08mm connections.

•Tension-clamp connection for secure attachment.

•RoHS compliant.

•Compact design with substantial weight handling capacity.
